Natural history of aortic root aneurysms in Marfan syndrome

Introduction

In 1896, the French pediatrician Antoine Marfan described the first patient with arachnodactyly. In the interim, additional phenotypic features have been described to fully elucidate Marfan syndrome (MFS), including the notorious association with aortic root aneurysms and aortic dissection.

MFS (MIM #154700) is the most common connective tissue disorder, with an incidence of 1 in 10,000. (1) MFS is autosomal dominantly inherited and associated with FBN-1 gene mutations located on chromosome 15q21 (2). The alteration in the microfibril protein structure results in the classic stigmata of ocular, skeletal, and cardiovascular abnormalities, such as mitral valve prolapse (MVP) and aortic root dilatation (3,4). Among these, cardiovascular complications account for a significant proportion of the shortened lifespan of MFS patients (5,6).

Approximately 60–80% of adult patients with MFS ultimately develop aortic root dilatation (7), with the prevalence being higher in males than in females (8). The aortic root comprises the aortic valve leaflets, the sinuses, the commissures, and the inter-leaflet triangles. The sinuses play a very important role in maintaining valve function by providing a space behind the aortic leaflets so that they do not occlude the coronary arteries orifices (9). This space also favors the development of eddy currents behind the leaflets, holding them away from the aortic wall and allowing them to close properly at the end of systole (9,10). Dilatation of the aortic root alters the normal physiology of the aortic valve, leading to aortic regurgitation. This is a result of annular dilation and outward displacement of the valve commissures, leading to an inability of the leaflet edges to coapt in diastole (11). Many patients succumb to the dreadful complication of aortic dissection, which generally begins just above the coronary ostia and can extend to involve the entire length of the aorta (a type-A dissection according to the Stanford classification, or type I dissection per the DeBakey classification).

Previous work by our group has addressed the natural history of thoracic aortic aneurysms (TAAs) (12-17); herein, the aim of our current study is to assess the natural course of the aortic root specifically in MFS patients. We feel that the focus on the MFS aortic root may produce information of clinical value, as the root is the source of lethal complications in these patients. The focus of this study is (I) to determine aortic root growth rates; and (II) to correlate complications (namely rupture, dissection, and death) with aortic root size in this patient cohort.

Methods

This study was approved by the Human Investigation Committee of the Yale University School of Medicine.

Patient population

Our database at the Aortic Institute at Yale-New Haven Hospital (YNHH) includes a total of 3,349 TAA patients’ records. Among these, a small subset of 78 patients confirmed to have MFS (by Ghent criteria and/or genetic confirmation) with documented dilatation of the aortic root were retrospectively reviewed. A total of 191 serial aortic root aneurysm size measurements were retrieved and verified over a median follow up of 150±85 months.

Anthropologic, radiologic and clinical data were retrospectively obtained from the hospital’s electronic medical records system and from the paper charts. Forty-six (59%) of the patients in this subset were males and 32 (41%) were females. Mean age at presentation was 48.2±14.6 years (range 22 to 83 years).

Included patients were confirmed to have MFS by meeting the 2010 revised Ghent criteria (18), which puts greater weight on aortic pathology, systemic features, and ectopia lentis as the cardinal features of MFS, and on genetic testing of the FBN-1 mutation when available. The aortic criterion was defined as having a Z score ≥2 or aortic dissection. Systemic score included multiple features such as thumb sign, pectus excavatum or scoliosis. A patient was considered to have MFS if they met the aortic criterion plus either ectopia lentis, FBN-1 mutation or a systemic score ≥7 (18).

Genetic testing was conducted in 22 patients (28%), confirming the FBN-1 gene mutation. Among these, one patient also showed a likely pathogenic variant of the TGFBR2 gene, associated with Loeys-Dietz syndrome (LDS), and one patient showed a likely pathogenic variant of the COL5A1 gene, associated with the classic type Ehlers-Danlos syndrome (EDS). These two patients were included in this study since they met the aortic and systemic score criteria of MFS, expressed the FBN-1 mutation, and had none of the discriminating features of EDS or LDS described in the Ghent nosology (18). Such findings of non-MFS mutations in patients diagnosed clinically with MFS are being increasingly recognized in the present era of whole exome sequencing (WES) for aortic disease patients (19).

All patients had aneurysmal dilatation of the aortic root, with at least one verified aortic measurement prior to the development of an endpoint (rupture, dissection and death). The aortic root was defined as the portion of the left ventricular outflow tract which supports the leaflets of the aortic valve, delineated by the sinotubular junction superiorly and the bases of the valve leaflets inferiorly, and comprising the sinuses, the aortic valve leaflets, the commissures, and the interleaflet triangles (9). The aortic root was considered aneurysmal once it attained a maximal diameter of 3.5 cm or greater.

Primary endpoints for this study at which we stopped tracking the natural history were surgical repair of the aortic root, with or without aortic valve replacement, development of acute type-A aortic dissection involving the root, development of aortic rupture, or death.

Survival follow-up of the patients was performed according to the Yale Aortic Institute methods described previously (20).

Exclusion criteria for this study were associated congenital aortic malformations (e.g., coarctation of aorta), history of traumatic aortic rupture, and patients who had no radiographic data prior to the development of an endpoint. Patients with chronic type-A aortic dissection were also excluded since dissection was considered as an endpoint, hence ending the natural history. Patients’ characteristics are listed in Table 1.

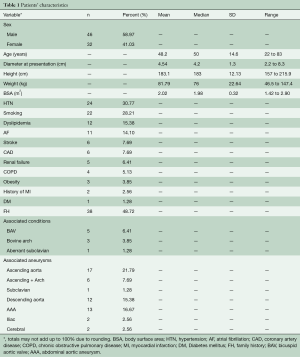

Table 1 Patients’ characteristics
Full table

Nine patients developed aortic dissection distal to the graft after their aortic root repair, and four patients developed type-B aortic dissection without involvement of the ascending aorta. These patients were not included in the statistical analysis.

Bicuspid aortic valves were confirmed by transthoracic echocardiography (TTE), transesophageal echocardiography (TEE) or by direct visualization during surgery in patients who underwent repair. Bovine aortic arch was defined as a common origin of the brachiocephalic and left common carotid artery. A bovine configuration was confirmed by computed tomography (CT) or by magnetic resonance imaging (MRI).

Family history was considered positive if a relative of the patient had a TAA or aortic dissection confirmed on an imaging study (CT, MRI, TTE or TEE), intraoperatively or on autopsy, including affected relatives alive or expired.

Imaging

Radiographic imaging data were accrued using TTE or TEE in 55 patients, CT in 16 patients, and MRI in 7 patients. For serial measurement follow up, the same imaging modality was utilized each time at the identical level and plane. Official reports from the Department of Radiology at YNHH were reviewed, and radiographic measurements were doubly confirmed by the senior author (John A. Elefteriades) or by another senior team member (Mohammad A. Zafar). Measurements from echocardiography were preferred (due to its efficacy in visualizing the root) and measurements taken using the leading-edge-to-leading-edge technique, in diastole (21).

Aortic rupture and acute flap-type aortic dissection were confirmed by imaging (CT or MRI), autopsy or operation.

Statistical methods

Statistical analysis was performed using R 3.1.0 (R Foundation for Statistical Computing, Vienna, Austria) (22).

Serial measurements of 70 patients were used to obtain growth rate estimates. Patients who expired were excluded from the growth rate analysis due to the difficulty of verifying accurate measurements before death. The clinically observed growth rate was arithmetically calculated and was also estimated using the instrumental variables approach described previously by our group (23), in which the change in aneurysm growth followed an exponential path, and the natural logarithm of the subsequent measured size to the previous measured size was related to the time interval between the two tests.

In order to generate an estimate of growth rate for larger aneurysms, we used the estimated regression coefficient from our model and multiplied this by an initial aneurysm size of 6 cm. But in the actual data, no patient had an initial aneurysm size of 6 cm, since such patients would typically be operated on rather than followed for further growth progression. To obtain the growth estimates for these patients, we used the coefficients of the estimated model but applied an initial aneurysm size that was larger than was observed in the data.

Since Marfan patients with an aneurysm size of 6 cm would very likely be operated on (if not sooner than reaching 6 cm), there is simply no other feasible way to obtain a growth rate estimate for such patients.

A logistic regression model was utilized to calculate the probability of adverse events, specifically a composite of aortic rupture, aortic dissection, and death. The adverse events were correlated with the aneurysm diameter as the risk factor. The estimated effect of root aneurysm size on the risk of complications was depicted using a percentage point increase in the probability of complications against a reference point of sizes <4 cm.

Results

Aneurysm characteristics & growth rates

The exponential model for growth rate estimation assumed that aneurysm growth rate increased with initial aortic diameter. The average aneurysm diameter at presentation for our sample was 4.54±1.3 cm (range 2.2 to 8.3 cm). The annual growth rate was estimated to be 0.26±0.05 cm/year. The minimum growth rate (for all the patients within the data set) was 0.132 cm and the maximum growth rate was 0.355 cm (Table 2). Figure 1 depicts the aneurysm growth rates in a density curve graph, comparing the observed growth rate with the statistically estimated growth rate.

Table 2 Estimated and observed growth rates
Full table

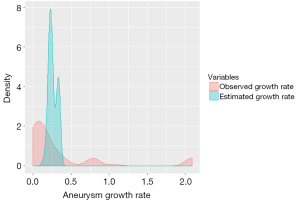

Figure 1 Growth distribution curve of the aortic root in Marfan syndrome patients. Observed growth rates are shown under the red curve, while the statistically estimated growth rates are shown under the blue curve. The mean aneurysm size from the data (4.5 cm) is different from the mean aneurysm size in the figure since the latter is obtained from the regression analysis.

Estimated growth rates were found to be faster in larger aneurysms (Figure 2), reaching up to 0.46 cm/year for aneurysms >6 cm, compared to the mean annual growth rate of 0.26 cm/year for the average aneurysm size (4.6 cm).

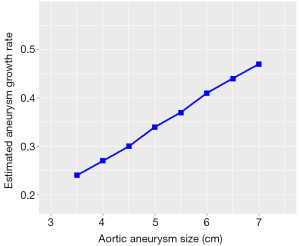

Figure 2 Estimated annual growth rate of the aneurysmal aortic root in Marfan syndrome patients. Larger aneurysms tend to grow faster.

Endpoints

Forty-eight patients (62%) underwent surgical repair of their root aneurysms with coronary artery re-implantation into the graft.

The average age at the time of developing aortic dissection was 36±4 years. The presenting event in six patients was type-A dissection involving the root, and one patient presented with aortic rupture, all of whom were managed surgically.

Eight patients (10%) expired during the total follow-up period. Among these, two patients died of aortic dissection, one patient died of methicillin-resistant Staphylococcus aureus (MRSA) septicemia complicating a type-A dissection repair, one patient had a possibly aortic related death (chest pain), and four patients had non-aortic deaths.

Complication rates

The incidence of complications increased as the aortic size enlarged. The average yearly rates of adverse events for six categories of aortic root sizes (3.5, 4, 4.5, 5, 5.5 and 6 cm) are depicted in Figure 3, showing a risk of less than 8% in diameters less than 4 cm, compared to 18% in diameters equal or greater than 6 cm.

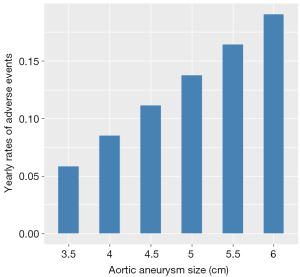

Figure 3 Annual rates of adverse events (rupture, dissection, and death) in Marfan syndrome patients.

The analysis of the estimated probability of risk of complications revealed a nonlinear trend (Figure 4), depicting a sharp increase at diameters 5.5 to 6 cm, attaining a 25% increase in the probability of complications, in comparison to the reference group. In this graph, the increased risk in the 4–4.9 cm cohort was not statistically significant.

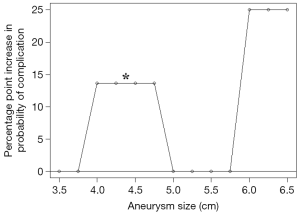

Figure 4 Estimated effect of aortic root aneurysm size on the risk of complications (rupture, dissection, and death) in Marfan syndrome patients. *, part of the hump between 4 and 4.75 cm is due to the skewed recognition of dissected patients in a small size range that would not normally be imaged. Our prior work on the “aortic size paradox” (24) indicates that because the tail of the bell curve thickens at smaller sizes, the relative rate of events is higher.

Discussion

Remarkable progress has been achieved in understanding the pathogenesis of MFS, monitoring clinical status, preventing complications, and improving the management of aortic dissection, leading to dramatically increased life expectancy in this disease.

Accurate information on aortic size and rate of growth is vital to the clinician in assessing the patient’s risk and developing the treatment plan. Our study helps to determine the rate of growth in aortic root aneurysms specifically in MFS, with a mean growth of 0.26 cm. This is significantly higher than the previously recognized 0.1 cm/year expansion rate in an overall thoracic aneurysm population (not exclusively MFS) individuals (25). Consistent with our previous findings in overall thoracic aortic aneurysm patients, aneurysm growth was found to increase with larger aneurysm sizes, reaching 0.4 cm/year at 6 cm and almost 0.46 cm/year at 7 cm.

The instrumental variable approach (23) provides a more reliable estimate for aneurysm growth because it purges the effects of measurement error. An aneurysm size measurement may be inaccurate by as much as 0.5 cm. The instrumental variables strategy is to correlate the change in measured aneurysm size (which includes measurement error) with a variable that is measured accurately—the time interval between the size measurements (e.g., we assume, as seems reasonable, that the dates when the tests were taken are accurate). Intuitively, measurement error—which is random noise—will be uncorrelated with the time interval between the measurements. Only the true growth rate should be correlated with the time interval variable. We prefer the instrumental variables approach because it mitigates problems of measurement errors inherent in estimates based on simple calculations of TAA growth rates, avoids the substantial fluctuations of observed growth rates that result from short-term serial follow-up periods, and yields much more robust statistical estimates with more compact confidence intervals.

In regard to aortic dissection, the International Registry of Aortic Dissection (IRAD) addressed the frequency with which MFS is responsible for this complication (26,27). The frequency varied with age. MFS was present in 50% of those under age 40, compared to only 2% of older patients with aortic dissection. None of the patients presenting with aortic dissection over the age of 70 had MFS, which can be attributed to the shorter lifespan of MFS patients (5). Our results are consistent with these reports, with the average age of patients developing dissection in our cohort being 36 years, reflecting the early onset of complications in these patients.

Elective replacement of the aortic root before critical enlargement is tremendously preferable to emergency repair for marked dilatation or dissection. The importance of this approach was illustrated in a series of 675 patients with MFS from Johns Hopkins, in which the 30-day mortality for elective repair, urgent repair (within seven days of presentation), or emergency repair (within 24 hours of presentation) was 1.5%, 2.6%, and 11.7%, respectively. This highlights the importance of timely pre-emptive surgical intervention in these patients to improve their survival outcomes (28). The 2010 guidelines from the American College of Cardiology (ACC), American Heart Association (AHA) and the American Association for Thoracic Surgery (AATS) recommend elective operation for patients with MFS at an external diameter of ≥5 cm to avoid acute dissection or rupture (29).

Our results reveal that the yearly risk of developing complications increases with diameters more than 5 cm, reaching 13%, compared to <8% in diameters less than 4 cm. This is further highlighted in Figure 4, depicting a ‘hinge point’ between 5.5 and 6 cm, where the probability of developing complications shoots up to 25%. The discrepancy between these two charts (Figures 3 and 4) is explained by the different statistical approach used to plot them; the hinge point graph (Figure 4) uses aneurysm sizes as various categorical variables, while the bar chart (Figure 3) is based on a regression model where aneurysm size is a single continuous variable. These results from the present study support the recommendations for early prophylactic aortic root replacement in the MFS patient made in the society guidelines.

Despite much more detailed knowledge of the molecular, cellular, and tissue effects of the mutations in FBN1, there is a paucity of evidence regarding medical treatment, and targeted, effective therapy remains elusive. Some have argued that medical treatments are not really effective (30). The use of beta-blockers has been the standard for decades, but surgical extirpation of aortic aneurysms remains the most important factor in improving survival in MFS patients.

The present study provides valuable information regarding the natural history of the aortic root specifically in MFS patients. This data supports early pre-emptive extirpation of the dilated MFS root to prevent acute aortic dissection, rupture, and death—thus extending the lifespan of these patients.

Limitations

The study is limited by its single center, retrospective nature. Detailed survival analysis could not be conducted due to the small sample size, owing to the relative rarity of the condition and the strict inclusion criteria. Moreover, the study did not adjust for any effect of gender on developing adverse aortic events.

Conclusions

We have statistically analyzed behavior of the aortic root over time specifically in the MFS patient:

• Aortic root aneurysms in MFS patients tend to grow at 0.26 cm/year, significantly faster than in non-MFS individuals, which may contribute to the increased risk of complications in these patients;
• The aortic root diameter remains a significant predictor of developing complications, with the risk increasing sharply at a ‘hinge point’ between 5.5 and 6 cm;
• Preemptive surgical intervention before attaining these critical diameters is justified to prevent the dreadful complications of dissection, rupture, and death.
