The total artificial heart in pediatrics: outcomes in an evolving field

Introduction

The last 15 years have seen a rapid evolution in the field of pediatric mechanical circulatory support. The frequency of use of ventricular assist device (VAD) or temporary total artificial heart (TAH-t) as a bridge to transplantation has more than doubled as almost one third of patients are bridged with a VAD or TAH (1). The numbers are even more dramatic for patients >11 years of age where more than half of patients are bridged to transplant on a VAD or TAH. While the majority of these patients have been supported with a VAD, recent advances in 3D virtual implantation and the development of the smaller, 50 cc SynCardia TAH-t (SynCardia Systems, LLC, Tucson, Ariz) have expanded the use of the TAH in children and small adults (2,3). In recent years, novel implantation methods have allowed the implantation of the device in patients with Fontan circulation and children as young as 10 years of age and as small as 0.9 m² body surface area (BSA) (4-7).

Data regarding the use of the TAH-t in children is generally limited to individual case reports/case series. Given the evolving use of the device, this study sought to investigate the outcomes for pediatric patients supported with the TAH-t.

Methods

Data collection and presentation

SynCardia Systems, LLC retains records of all TAH-t implantations including basic patient characteristics and clinical outcomes. The SynCardia database was queried to identify all pediatric patients ≤18 years of age implanted with the device between December 1985 and October 2019. The database contains a total of 1,876 patients. Three patients did not have a documented date of birth and were excluded. Interagency Registry for Mechanically Assisted Circulatory Support (INTERMACS) profile was collected beginning in 2014 and is reported for all patients for whom the data is available, this includes 9 patients implanted with a 50 cc TAH-t and 2 patients with a 70 cc TAH-t. BSA and T10 measurements (posterior sternum to anterior spine measurement at T10) were infrequently reported in the database on patients prior to 2014. Eleven patients (31%) implanted with a 70 cc TAH-t had BSA values recorded and 6 (17%) patients had a T10 measurement available. Thus, the BSA and T10 measurements are reported for the 50 cc devices alone.

Data was presented as average, mean ± standard deviation, or median (range) as appropriate. Proportion (frequency) data is also provided as percentages. Statistical comparative tests were not performed.

Results

Demographics and support duration

Fifty-one patients were supported with the TAH-t during the study period (Table 1). Fifteen of the patients (29%) were implanted with a 50 cc TAH-t. There has been a progressive increase in the number of implants over time with a total of 19 implants between 2015 and 2019 (Figure 1). The majority (15 of 19, 79%) of patients supported with a TAH-t in the last 5 years were implanted with the 50 cc device.

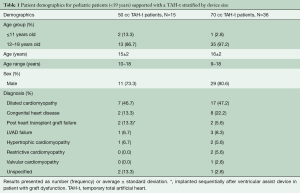

Table 1 Patient demographics for pediatric patients (<19 years) supported with a TAH-t stratified by device size
Full table

Figure 1 Number of pediatric TAH-t implants in 5-year increments stratified by device size.

The most common implant diagnosis for the 50 cc and the 70 cc was dilated cardiomyopathy (Table 1). The majority of patients implanted were 12–18 years of age, with 2 patients <12 years old implanted with a 50 cc TAH-t and 1 patient <12 years-old implanted with a 70 cc TAH-t. The median age for the 50 cc and 70 cc patients were 15 and 16 years respectively. Nine of the 50 cc TAH-t patients had an INTERMACS profile recorded, 6 were INTERMACS 1, 2 patients were INTERMACS 2 and 1 was INTERMACS 4. Only two 70 cc TAH-t patients had and INTERMACS profile recorded, 1 INTERMACS 1, and 1 INTERMACS 2 patient.

The patients have been supported for a total of 6,243 days. The average support duration was 145 days and 113 days for 50 cc and 70 cc TAH-t patients respectively. The majority of patients were supported for 6 months or less (Table 2).

Table 2 Support characteristics for pediatric patients (<19 years) implanted with a TAH-t stratified by device size
Full table

Patient size for 50 cc TAH-t patients

BSA data and T10 measurement were available for the majority of 50 cc implant patients. Thirteen (87%) of the 50 cc patients had BSA values available and 10 (67%) had T10 measurements. The average BSA was 1.5 m² and the smallest patient implanted had a BSA of 1.16 m². The average T10 measurement was 11 cm with the shortest distance 7.9 cm.

Freedom driver support

A total of 13 patients have been converted to Freedom Driver support, seven 50 cc TAH-t patients and six 70 cc TAH-t patients (Table 3). The patients were converted to the Freedom Driver at an average of 68 and 83 days respectively. A total of 8 patients were discharged from the hospital, three 50 cc TAH-t patients and five 70 cc TAH-t patients. Twelve (92%) of the patients converted to the Freedom Driver have been transplanted and 1 is currently on support.

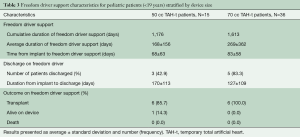

Table 3 Freedom driver support characteristics for pediatric patients (<19 years) stratified by device size
Full table

Outcomes

Overall survival (alive on device or transplanted) is 71% [36] with a total of 35 patients being successfully supported to transplantation and a single patient currently being supported (Table 4). All of the patients supported with the 50 cc TAH-t underwent heart transplantation or were alive on device at 60 days. The three patients who did not survive on the 50 cc TAH-t passed away at day 62, 103, and 110, respectively. Twenty-seven (75%) of the patients supported with the 70 cc TAH-t underwent heart transplantation or were alive on device at 60 days.

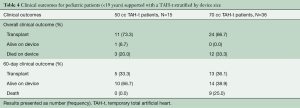

Table 4 Clinical outcomes for pediatric patients (<19 years) supported with a TAH-t stratified by device size
Full table

Discussion

The current report describes the evolving current outcomes and evolving use of the TAH-t in children. There has been an appreciable increase in the number of children implanted with the device in the last 5 years and a shift toward greater use of the 50 cc TAH-t. The current report also documents the feasibility of hospital discharge and implantation of the device in children as young as 9 years of age. These data are encouraging and suggest this device is an effective support strategy in selected children requiring biventricular support.

Historically, the use of the TAH-t was limited to patients with a BSA ≥1.7 m² and an anterior-posterior distance from the sternum to the 10^th thoracic vertebra of at least 10 cm (8). This limited use of the device in children and young adults (9). As pediatric centers have garnered experience with the device and with mechanical circulatory support in general, the use of device has increased. Increased application of TAH-t at individual centers has been driven by extending the lower limits of “acceptable” patient size through 3D modeling, virtual implantation and novel implantation approaches to children with congenital heart disease (3,5,6). Multicenter collaboration using these techniques have allowed centers to implant children as small as 0.9 m² BSA and with a variety of anatomic configurations. While these trends increased the number of device implants, it was unclear if a more aggressive approach to implantation would come at the expense of clinical outcomes. The current report suggests good clinical outcomes in the current era are possible using this approach as these are patients who do not have good VAD support options. The TAH does not supplant the use of VAD therapy in programs but rather provides a possible solution for those patients in whom VAD therapy has been shown not to be reliable or effective. It is especially notable that the clinical outcomes with the 50 cc TAH-t are similar to other reports documenting the clinical outcomes for adult patients requiring biventricular support and for adults receiving a total artificial heart. A recent analysis of the EUROMACS registry reported a 67% survival rate at 3 months for adults who received primary biventricular support (10), while INTERMACS reported a 3-month survival of 73% for adults implanted with a total artificial heart (11).

The current report is also notable for documenting good clinical outcomes and the potential for discharge on the Freedom Driver. While the number of patient discharges is small (8 patients), the frequency of discharge (61%) is notable when considering the total number of patients who were converted to the Freedom Driver was also limited. The frequency of discharge is also similar to the reported frequency of pediatric patients discharged with a continuous flow VAD in the current era (55%) (12). The relatively low frequency of discharge compared to adults is likely multifactorial, including the relatively short waitlist time for adolescents in the United States, and evolving experience with hospital discharge with children on VAD/TAH-t. It was not possible to assess the reasons for continued hospitalization in the group of children who were never discharged given the limits of the database. There are ongoing projects analyzing the barriers to discharge within the field that may help to elucidate reasons for ongoing hospitalization. The most notable is a multicenter project through the Advanced Cardiac Therapies Improving Outcomes Network (ACTION) focused on facilitating hospital discharge in children supported with a VAD or TAH. This network will also collect patient level data and clinical management data to further understand the predictors of clinical outcome and work to improve clinical outcomes in a rare patient population with severe disease.

Limitations

Patient level data including the specifics of diagnosis including the severity and nature of congenital heart disease and patient condition (e.g., end organ dysfunction) are not available in the clinical database. The specifics of patient size including thoracic dimensions and body size have only been collected since 2014 and remain incomplete. This lack of granular data limits the ability to understand the impact of size and complex congenital heart disease on clinical outcomes.

Conclusions

There has been an increase in the number of the children supported with TAH-t over time, which has coincided with the development of the 50 cc TAH-t. The clinical outcomes to date suggest both the 50 cc and 70 cc TAH-t are an effective supportive strategy in high acuity patients requiring biventricular support. Multicenter collaboration will be integral to improving outcomes especially among the smallest patients and those with congenital heart disease, which may require novel surgical implant techniques.

Acknowledgement

The authors express their gratitude and deep appreciation to the Cincinnati Children’s Media Lab Team for creating the SynCardia Animation. The Media Lab includes Director Ken Tegtmeyer MD, Associate Director Ryan A. Moore MD, Lead Animator Jeff Cimprich BFA, Animator Cat Musgrove BFA, and Animator Matt Nelson BFA. Previous Media Lab Animator Ren Wilkey BFA also contributed to this project. Peace Madueme MD provided voiceover work. David Morales MD provided extensive support and significant contributions to the vision and content creation of this animation. This work was made possible by the Jr. Co-Op Foundation Grant that Dr. Morales and Dr. Moore received to create surgical animations for provider, patient, and family education.

Footnote

Conflicts of Interest: Dr. Lorts is a consultant for SynCardia, Abbott, Medtronic, and Berlin Heart. Dr. Morales is a consultant for Cormatrix/Azyio, Berlin Heart, SynCardia, Abbott, Medtronic and instructor for SynCardia and Berlin Heart. The other authors have no conflicts of interest to declare.
