Open total arch replacement with trifurcated graft and frozen elephant trunk

Erik Beckmann#, Andreas Martens#, Wilhelm Korte, Tim Kaufeld, Heike Krueger, Axel Haverich, Malakh Shrestha

Department of Cardio-Thoracic, Transplantation and Vascular Surgery, Hannover Medical School, Hannover, Germany

#These authors contributed equally to this work.

Correspondence to: Malakh Shrestha, MD. Department of Cardiothoracic, Transplantation and Vascular Surgery, Hannover Medical School, Carl-Neuberg-Strasse 1, 30625 Hannover, Germany. Email:

Background: The frozen elephant trunk (FET) technique was introduced in Hannover Medical School in 2001 to treat patients with complex aortic arch pathologies. Since 2012, we primarily use the trifurcated Thoraflex Hybrid FET graft. In this article, we report our experience with the trifurcated FET graft.

Methods: Between November 2012 and September 2018, 211 patients underwent FET implantation with the trifurcated Vascutek Thoraflex Hybrid graft. The indications for surgery were: degenerative aneurysms in 68 patients, acute aortic dissections (AD) in 96 patients, and chronic ADs in 47 patients. And, 18% of cases were sternal re-operations.

Results: Mean cardiopulmonary bypass time, aortic cross-clamp time, and myocardial ischemia time were 262±84, 115±71, 50±26 minutes, respectively. Incidence of re-thoracotomy for bleeding, stroke, permanent paraplegia/paraparesis, prolonged ventilatory support (>96 h), and long-term dialysis were 13%, 18%, 2%, 21%, and 5%, respectively. In-hospital mortality was 12%. Follow-up was complete for 100% of patients and comprised a total of 513 patient years. The mean follow-up time was 2.2 [0–6] years. During follow-up, there were 32 aortic re-interventions distal to the FET. The survival rate at 1 and 5 years was 84% and 81%, respectively.

Conclusions: Total aortic arch replacements with trifurcated FET can be performed with positive results. The trifurcated graft allows selective anastomosis of the supra-aortic vessels, which might result in improved hemostasis.

Keywords: Aortic arch surgery; frozen elephant trunk (FET); trifurcated graft; zone 2 anastomosis

Submitted Nov 25, 2019. Accepted for publication Mar 03, 2020.

doi: 10.21037/acs.2020.03.09

Video Open total arch replacement with trifurcated graft and frozen elephant trunk.


Total aortic arch replacement has been and remains, a complex operation. However, even after successful operations, many patients require further repair of the distal aorta. Open surgical repair of the descending aorta represents a difficult operation, especially when the proximal anastomosis needs to be connected to a previously implanted aortic arch graft. The introduction of the “elephant trunk” (ET) simplified this operation tremendously (1).

The “frozen elephant trunk” (FET) technique was developed by Karck and colleagues (1), who modified Borst’s ET technique by using a stent graft to secure the distal ET section (2). This allows treatment of complex pathologies of the aortic arch and proximal descending aorta in a single-step procedure, and facilitates second-stage repair, if needed (3).

In 2012, working in close collaboration with Vascutek Terumo, we introduced the Thoraflex hybrid FET graft (4). This novel composite prosthesis combines a trifurcated-branched gelatin-coated woven polyester graft and a distal stented graft with a simple deployment mechanism. The woven polyester graft has three branches for aortic arch connection, and one extra branch for perfusion. The Thoraflex hybrid is the only commercially available FET prosthesis with side branches in Europe and the United States of America.

Despite surgical and technological advances, total aortic arch replacement with a FET graft remains a challenging procedure, which requires a period of hypothermic circulatory arrest (HCA). Peri-operative mortality and morbidity has improved substantially over the recent years, but still ranges from 4–17% (5-10).

In a previous report, we described our experience of the first 100 operations using the Thoraflex graft (7). In this manuscript, we report our most recent experience with the trifurcated FET graft.



Between November 2012 and September 2018, 211 patients underwent total aortic arch replacement with the Vascutek Thoraflex hybrid prosthesis. We analyzed the data according to the underlying disease (degenerative aneurysm (An), N=68; acute aortic dissection (AD) (Stanford type A, DeBakey I, N=96) and chronic aortic dissection (CD) (N=47). This retrospective study was approved by the institutional ethics committee.

Patients were followed either through regular visits at our outpatient clinic or actively contacted by a study nurse team. Clinical data was collected from referring physicians after informed consent. Follow-up ended in December 2017 and was 100% complete.

Pre-operative patient characteristics are shown in Table 1.

Table 1

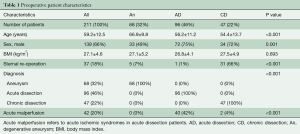

Table 1 Preoperative patient characteristics
Full table

Peri-operative management

The cerebrospinal fluid (CSF) is drained such that the spinal pressure remains below ca. 12 mmHg. The CSF drainage catheter is inserted just prior to the operation in elective operations or, in acute cases, immediately after the operation in the intensive care unit. Patients with coagulopathies receive CSF drainage only after normalizing the international normalized ratio (INR) to a maximum of 1.2.

Surgical technique

After a median sternotomy, extra-corporeal circulation (ECC) is initiated with direct cannulation of the aorta and the right atrium. Direct aortic cannulation using the Seldinger technique under transesophageal echocardiography (TEE) guidance is our standard method for arterial access, including AD cases. Axillary or femoral cannulation is only used in selected patients. The left heart is vented through the right superior pulmonary vein. The surgical field is flooded with CO2.

Cold blood cardioplegia (Buckberg) is our preferred method of myocardial protection, and is given every 30 minutes.

Cerebral protection is achieved by HCA at 18–28 °C (core temperature) along with bilateral selective antegrade cerebral perfusion (SACP).

During cooling, the aortic root/ascending aortic procedure and other concomitant cardiac procedures are performed. Thereafter, the left ventricle is de-aired and the heart is perfused antegrade via a cannula inserted proximal to the aortic clamp in the ascending aorta/ascending aortic graft. Both the cardiac perfusion pressure and coronary flow are controlled (target flow: 150–200 mL/minute, target pressure: 60–80 mmHg). Flow and pressures can vary significantly depending on cardiac size and pathologies. Typically, cardiac perfusion pressures are not increased over 85 mmHg. During cardiac perfusion, the left ventricle is thoroughly vented. The aortic arch is then replaced on an empty ‘beating heart’. After reaching the desired temperature, the systemic circulation is arrested and the aorta is opened. With the patient in Trendelenburg position, catheters (Medtronic DPL, USA) are introduced into the left carotid artery and the innominate artery for SACP. Cerebral perfusion is initiated at a rate of 10 mL/kg/min. SACP blood temperature is kept 2 °C lower than target core temperature.

The left subclavian artery (LSA) is clamped or occluded with a Fogarty catheter (Baxter, USA).

The aorta is transected either between the left common carotid artery (LCCA) and the LSA (zone 2), or distal to the LSA (zone 3).

In patients with AD where the distal aortic arch is not aneurysmal, the distal anastomosis is preferably performed in zone 2.

The FET is then deployed in the proximal descending aorta. We use an endoscope to control the position of the FET after its placement in the descending aorta.

The perfusion to the lower part of the body is restarted via the fourth branch of the graft. Currently only branched aortic arch grafts are used in our center. After the distal anastomosis is completed, the proximal end of the aortic arch graft is either anastomosed to the native ascending aorta or the ascending aortic graft. In this way, the time for potential myocardial ischemia is reduced, as well as the re-warming time and consequently, the total operation time.

The LSA is then anastomosed to the third branch of the aortic arch graft and re-warming of the patient is initiated. The first and the second branch of the aortic arch graft are then anastomosed to the innominate artery and the LCCA. Once the ECC is discontinued, the fourth branch used for antegrade perfusion is ligated and resected.


Acute malperfusion refers to acute ischemic syndromes in patients with AD. Chronic stroke refers to previous ischemic strokes in the patient’s medical history. Permanent neurological deficits (PND) are defined as any new-onset post-operative focal neurological deficit or any focal lesion found in cerebral computed tomography (CT) or cerebral magnetic resonance tomography, irrespective of clinical symptoms. Spinal cord injury (SCI) is defined as any clinical appearance of temporary or prolonged paraplegia or paraparesis. In patients with suspected PND, SCI, or severe delirium, a neurologist was consulted. Imaging was performed according to recommendations by the neurologist.

Statistical analysis

Data were collected and analyzed retrospectively. GraphPad Prism 6 for Windows (San Diego, California, USA) was used to perform data analysis. D’Agostino & Pearson omnibus normality test was used to analyze the distribution of data. Continuous variables were given as mean ± standard deviation (SD) or median + range (Q25–Q75, interquartile range). Categorical variables were summarized as total number (N) and percentages.


The pre-operative patient demographics are given in Table 1. Patients with degenerative aneurysms were significantly older in comparison to AD and CD patients. And, 42% of AD patients presented with malperfusion syndrome pre-operatively.

Peri-operative and post-operative data are given in Tables 2 and 3. Mean cardiopulmonary bypass time, aortic cross-clamp time, and myocardial ischemia time were 262±84, 115±71, 50±26 minutes, respectively.

Table 2

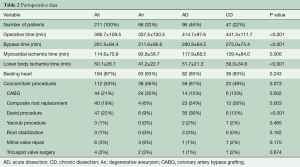

Table 2 Perioperative data
Full table
Table 3

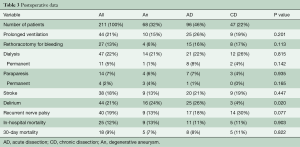

Table 3 Postoperative data
Full table

Nearly one-half of patients (43%) underwent concomitant aortic root repair (Bentall procedure or valve-sparing aortic root repair). The latter was more commonly used in AD patients. Operative times were significantly less in patients with degenerative aneurysms.

Overall peri-operative mortality was 12%, while 17% of patients needed temporary dialysis, and only 5% of patients depended on dialysis at discharge. The incidence of new-onset PND was 18%. Temporary SCI occurred in 5% of patients, resolving with therapy until discharge. Prolonged SCI (at discharge) was found in 2% of patients.

Follow-up was complete for 100% of patients and comprised a total of 513 patient years. The mean follow-up time was 2.2 [0–6] years. During follow-up, there were 32 aortic reinterventions distal to the FET. Detailed information on distal interventions can be found in Table 4. The survival rate at 1 and 5 years was 84% and 81%, respectively.

Table 4

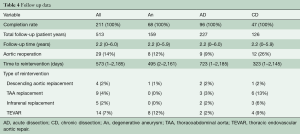

Table 4 Follow up data
Full table


The FET technique builds on the advantages of the classical ET technique and at the same time offers several added advantages. These advantages include the notion that complex aneurysms of the aortic arch and the proximal descending aorta can be treated in a single-stage operation (1). In case of distal aortic progression of the disease, the FET offers an ideal landing zone and may facilitate second-stage repair (3). The indications have expanded from aortic aneurysms to both acute and chronic ADs. In acute dissections with malperfusion, the FET procedure has the potential to expand and stabilize the collapsed true lumen (11).

However, the results after open aortic arch repair mainly depend on peri-operative management and patient factors. The usage of a FET—with or without a trifurcated graft—does not in itself improve the immediate peri-operative results.

Over the years, peri-operative management and operative techniques have evolved greatly. These factors have contributed towards better results after open aortic arch surgery. During the early years of FET implantation, all three supra-aortic vessels were re-implanted in the arch graft as an ‘island’ (en bloc technique). The introduction of the trifurcated FET graft offers the advantage of separate anastomosis of each supra-aortic vessel. This may help with more complete resection of diseased vessels in AD patients or dilated vessels in aneurysm patients.


The FET technique offers the potential benefit of treating complex aneurysms of the aortic arch and descending aorta in a single-stage operation. However, careful patient selection, review of the pre-operative imaging, and choosing the right prosthesis to reach the distal landing zone are important in achieving this goal. If the aneurysm of the descending aorta extends beyond the level of the distal landing zone or if the disease progresses, a second-stage intervention is required. In a previous report, we have shown that the second-stage aortic completion can be facilitated by the usage of the FET (3). In the present study, one patient of the aneurysm group required open descending aortic replacement and eight patients underwent endovascular repair of the thoracic aorta. The median time to re-intervention was 41 months.

Acute dissection

In AD patients, performing a total aortic arch replacement with FET is controversial. Nevertheless, FET may be specifically helpful in the following conditions (11): first, in patients with distal malperfusion, FET implantation expands the true lumen in the descending aorta and helps in restoring visceral/lower body perfusion. Malperfusion was present in 42% of all AD patients. Following FET implantation, none of the patients required further measures in the down-stream aorta to relieve ischemia. This hypothesis has also been addressed in the position paper of the EACTS published in 2015 (11). Second, in patients with rupture of the distal aortic arch or the proximal descending aorta, FET implantation may be the only way to save the patient (11).

In the present study, 42% of AD patients presented with malperfusion syndrome pre-operatively. At first, this number seems to be higher than the expected incidence of malperfusion caused by acute dissection, which is approximately 30% (12). However, the higher rate in the current study can be explained by the fact that we intentionally treated patients with malperfusion with FET to re-expand the true lumen.

It is known that the mortality rate is significantly higher in AD patients with malperfusion (12). In light of this, the mortality rates reported in this study (30-day: 7%, in-hospital: 13%) seem to be acceptable. Other groups have reported early mortality rates ranging from 5–18% for patients with AD who undergo FET implantation (10,13-15). Thus, the results of the current study using the trifurcated FET prosthesis seem to be comparable to the outcome of other groups.

Chronic dissection

Patients of this group include either patients with previous type B dissection or patients who underwent previous repair for type A dissection, and of whom present now with aortic arch enlargement. Careful review of the pre-operative imaging is of great importance in these patients, as re-entries in the downstream aorta must be identified. This might help to prevent post-operative malperfusion caused by thrombosis of the false lumen.

In the present study, two-thirds of all CD patients had history of previous surgery, i.e., were re-operations. Nevertheless, the in-hospital mortality rate was 11%, and not significantly different when compared to elective operations for aortic aneurysm.

In order to avoid occlusion of the lumbar arteries, we have stopped using the 150 mm Thoraflex graft. In the present study, only 4% of CD patients had temporary paraparesis. All these patients recovered, resulting in a permanent paraparesis rate of 0%. Other groups have reported SCI rates of up to 20% (6). Thus, the numbers of the current study seem to be significantly lower than the rates reported by others (6).

Role of modern perioperative management techniques

In addition to bringing the distal aortic anastomosis more proximal, it is also advisable to use other modern peri-operative techniques, such as continuous myocardial perfusion (i.e., our “beating heart aortic arch surgery” technique) (16,17), and spinal drainage, as described above (17), to improve overall outcome. Our data proves the importance of meticulous hemostasis to avoid bleeding, re-thoracotomy, and associated adverse outcomes. We believe that the trifurcated graft allows easier hemostasis than the traditional island technique. Thus, using branched aortic arch grafts may facilitate surgical hemostasis (18). Using a combination of management changes, we were recently able to show significant improvements in outcomes after total aortic arch repair (17). The peri-operative mortality rate could be reduced from 15% to 8%. Results from other groups have shown similar conclusions (19).


This study is of retrospective nature and carries all potential disadvantages of this kind of study. To some extent, there might also be selection bias, as AD patients with malperfusion might have had a higher chance of receiving a FET procedure in order to re-expand the true lumen. Although the FET showed adequate outcomes in this study, the graft itself—either trifurcated or not—does not improve immediate peri-operative results.


Total aortic arch replacements with trifurcated FET can be performed with positive results. The trifurcated graft allows for selective anastomosis of the supra-aortic vessels, which might result in improved hemostasis.
