The commercial introduction of transcatheter aortic valve replacement (TAVR) in the United States in 2011 ushered in a paradigm shift in the management of severe aortic stenosis (1). Although initially limited in its infancy to patients who were at extreme or high-risk for surgical aortic valve replacement (SAVR), the PARTNER 3 and Evolut Low-Risk randomized trials in 2019 demonstrated non-inferiority of TAVR compared to SAVR in low surgical risk patients (2,3). Shortly thereafter, the United States Food and Drug Administration (FDA) expanded approval for TAVR to include patients at all surgical risk profiles (4). Based on recent data from the Society of Thoracic Surgeons/American College of Cardiology Transcatheter Valve Therapy Registry, TAVR volumes have now surpassed SAVR volumes (5).
The transfemoral (TF) approach has become the most common and preferred vascular access route for TAVR as it is associated with the lowest complication rates compared to other alternative access techniques (6). However, anatomical limitations such as inadequate vessel caliber, extreme tortuosity, or extensive preexisting aorto-iliac atherosclerosis can render TF-TAVR challenging or impossible (7). When these conditions are present, alternative access sites should be carefully considered. These alternatives include trans-apical, direct-aortic, transcaval, trans-carotid, and trans-axillary (TAx) TAVR. Trans-apical and direct-aortic TAVR were initially preferred, but have since fallen out of favor due to inferior outcomes as illustrated in the ad-hoc analysis of the randomized control studies comparing TAVR to SAVR in high-risk surgical patients (8,9).
In contrast, TAx-TAVR has shown superior outcomes compared to trans-apical and aortic approaches with balloon-expandable valves, and similar outcomes compared to TF-TAVR with self-expanding valves (6,7). In addition, the open surgical cut-down procedure used to expose the axillary artery is familiar to cardiac surgeons accustomed to cannulating it for cardiopulmonary bypass. Another advantage of TAx-TAVR compared to other alternative access sites is that it allows for a fully percutaneous approach with contemporary delivery systems. For these reasons, TAx-TAVR has developed into the second most common access route for TAVR when advanced iliofemoral disease renders TF access infeasible (6).
Herein, we discuss important aspects of TAx-TAVR within the framework of the following sequential steps: (I) patient selection; (II) imaging; (III) preparation; (IV) vascular access; (V) axillary access; (VI) valve deployment; (VII) closure.

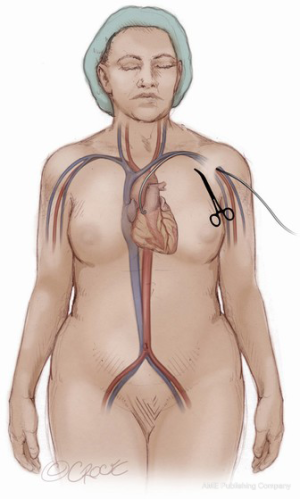

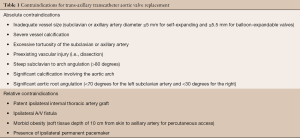

Proper patient selection is critical to conducting successful TAx-TAVR. The heart team should consider this strategy for patients with symptomatic, severe aortic stenosis and anatomical limitations that render TF-TAVR access challenging. To be considered for TAx-TAVR, the cross-sectional diameter of the subclavian and axillary arteries must be of sufficient diameter. Of the current commercially available devices, the CoreValve Evolut Pro+ System (Medtronic, Minneapolis, Minnesota) requires a minimum vessel diameter of 5.0 mm for the 23–29 mm sized valves and the Edwards SAPIEN 3 Transcatheter Heart Valve System (Edwards LifeSciences Corp, Irvine, California) requires a minimum axillary artery diameter of 5.5 mm for valve sizes 20–26 mm, and 6.0 mm for 29 mm sized valves. Even in patients with iliofemoral disease, the axillary artery minimal luminal diameter is usually >5.0 mm, making both systems viable options (10). Both the left and right axillary can be used, but the left is preferred as it allows better alignment with the native annulus and less risk of jeopardizing carotid perfusion, which may be a concern when the right axillary artery is used (6). The selected vessel must be free of severe calcification, excessive tortuosity, steep angulation of the subclavian artery at the takeoff from the aortic arch (>80 degrees), and significant root angulation (<70 degrees for the left subclavian artery and <30 degrees for the right) (11). In patients with a history of coronary artery bypass graft and a patent left internal mammary artery (LIMA), TAx-TAVR can safely be performed if the diameter of the axillary artery at the takeoff of the LIMA is greater than 5 mm or 5.5 mm. Percutaneous access is contraindicated in morbidly obese patients when the skin to axillary artery depth is greater than 10 cm. The absolute and relative contraindications for TAx-TAVR are summarized in Table 1.
Standard preoperative evaluation for TAx-TAVR includes a TAVR protocol computed tomography (CT). Preoperative TAVR-CT protocol of the chest, abdomen, and pelvis permits interrogation of the aortic root anatomy, coronary heights, widths of the sinuses of Valsalva, and absence of severe calcification or extreme tortuosity involving the axillary arteries (12). It also allows for accurate measurements of the axillary artery diameter.

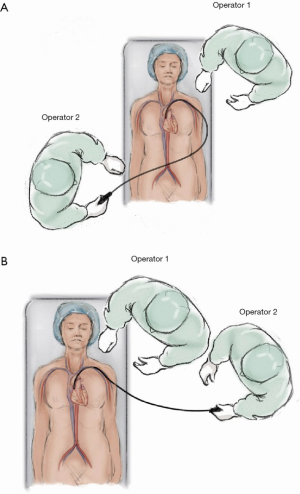

The patient is brought to the catheterization laboratory or hybrid operating room and placed in the supine position. A cardiac anesthesiologist, stationed at the head of the patient’s bed, induces either conscious sedation for percutaneous or general anesthesia for a cut-down approach. Intravenous antibiotics are administered for surgical antimicrobial prophylaxis. The patient’s arms are positioned at their side so that radial access, if needed, and axillary access can be obtained without having to mobilize the arms. The patient is prepped and draped per standard surgical convention. A sterile table extending perpendicularly away from the bed is placed next to the patient’s shoulder on the side where axillary artery access is to be established (Figure 1). The fluoroscopic monitors should be placed above the sterile table and the fluoroscopic camera itself placed on the side opposite the intended access site. This arrangement allows the providers to work separately during the portion of the case where femoral and axillary access are established or in tandem side-by-side during valve deployment.
Femoral arterial access is obtained by accessing the common femoral artery with a 7Fr sheath under ultrasound (US) guidance via the Seldinger technique. The common femoral vein is likewise accessed via the Seldinger technique with US guidance. If there is going to be consideration for use of a Sentinel Cerebral Protection System (Boston Scientific Corp., Marlborough, MA, USA), right radial artery access should also be obtained. Following the administration of systemic heparin with a goal ACT of 250–350, the established access points can safely be utilized for catheter delivery.

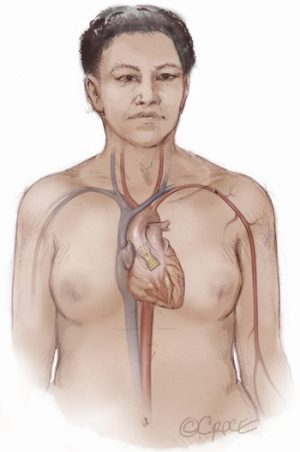

A 6Fr pigtail catheter is then advanced from the femoral artery sheath to the base of the coronary sinus. A root aortogram is obtained using LAO cranial angulation. A temporary transvenous pacemaker is floated from the femoral venous sheath and anchored into the trabeculae of the right ventricle. If complete percutaneous access is to be utilized, a 5Fr Impulse diagnostic catheter (Boston Scientific Corp., Marlborough, MA, USA) should be introduced into the femoral sheath to access the subclavian artery on the side to be used for large bore sheath access. Through this catheter, a 0.018” guidewire should be advanced into the subclavian artery and then into the brachial artery. This wire serves as a useful marker on ultrasound during axillary artery access (Figure 2). The wire is also utilized at the end of the procedure as a guide for balloons or stents if the axillary artery requires repair after sheath removal. Once the wire is in place, the IM catheter can be removed leaving the wire outside of the sheath. Through the sheath, a pigtail catheter can then be advanced to the aortic root. If utilized, the cerebral protection device can be advanced from the right radial sheath at this time into the aortic arch and deployed to cover the brachiocephalic and right common carotid arteries.

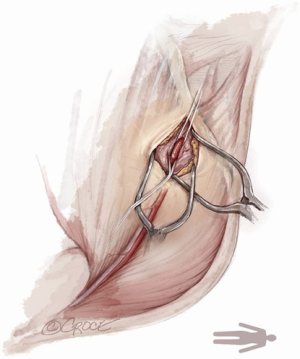

For open access, the left axillary artery can be exposed through a small infraclavicular incision in the deltopectoral groove. The pectoral muscle is separated along the muscle fibers and the pectoralis minor muscle is partially divided. Although the axillary artery lies in close proximity to the brachial plexus, nerve damage can be avoided with meticulous surgical technique while dissecting down to the axillary artery. The axillary artery is exposed, and control of the vessel is established by encircling the axillary artery with soft rubber vessel loops proximally and distally (Figure 3).

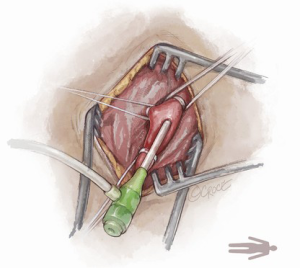

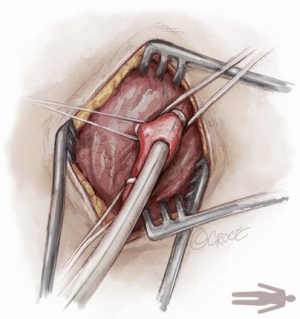

The Seldinger technique is used with insertion of a 6Fr sheath between the vessel loops to access the axillary artery (Figure 4). A Bernstein catheter (Merit Medical, Rockland, MA, USA) is then inserted, and the valve is crossed. A Safari wire (Boston Scientific Corp., Marlborough, MA, USA) or Lunderquist extra-stiff wire (Cook Group, Bloomington, IN, USA) is positioned within the left ventricular apex. Next, a large-bore sheath is inserted into the axillary artery (Figure 5). The valve is crossed, followed by the insertion of a large sheath, which is an important difference compared to the TF approach. It is important to watch the insertion of the sheath under fluoroscopy since tortuosity of the vessel can create a kink in the sheath.

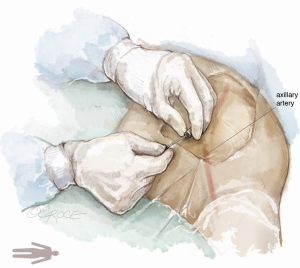

For complete percutaneous access, the inferior border of the clavicle and the medial edge of the pectoralis major muscle, near the deltopectoral grove, serve as superficial landmarks to identify the location of the axillary artery. A metallic instrument can be placed on the skin to outline the course of the artery in relation to the guidewire by fluoroscopy. Local anesthesia is administered to the soft tissue surrounding the axillary artery. Next, the left axillary artery is punctured with a micro puncture needle under US and fluoroscopic guidance (Figure 6).

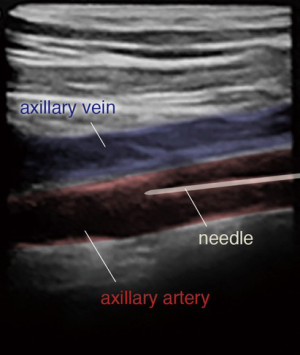

The 0.018-inch wire is visualized in the axillary artery, distinguishing the artery from the axillary vein (Figure 7). The angle of needle insertion should be as parallel to the skin as possible to minimize the likelihood of sheath kinking in the soft tissue. Additionally, the needle trajectory should be in the course of the axillary artery to avoid extra tension in the artery. The thoracoacromial branch is used as a marker for arterial puncture. The artery is punctured using a micropuncture system and once the wire is entered into the axillary artery, proper positioning is confirmed under fluoroscopy. The inner cannula of the micropuncture dilator can be advanced into the vessel and an angiogram can be taken to ensure appropriate positioning (Figure 8). The micropuncture wire is then re-introduced and the dilator upsized to accept a 0.035-inch guidewire.
Subsequently, two Perclose Proglide (Abbott Laboratories, Chicago, IL, USA) devices are preemptively placed in the axillary artery for suture-mediated closure of the artery. Following the insertion of an 8Fr sheath, the native aortic valve is then crossed. The ensuing steps are identical to the open approach.

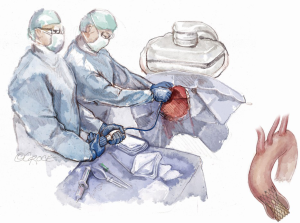

Both the self-expanding CoreValve Evolut Pro+ System (Medtronic, Minneapolis, MN, USA) and the balloon-expandable Edwards SAPIEN 3 Transcatheter Heart Valve System (Edwards LifeSciences Corp, Irvine, California) can be used for Tx-TAVR. For the Sapien 3 valve, the device is advanced into the ascending aorta. The sheath is then pulled back into the axillary artery before the valve is pulled back to load into the balloon. For the Evolut system, the initially placed 14Fr sheath is removed, and the device is advanced into the axillary artery under fluoroscopic guidance. The remainder of the steps are similar to the TF approach. After confirming valve positioning with an aortogram (Figure 9), the valve is deployed under ventricular pacing (Figure 10). For a balloon-expandable valve, the heart is paced at 180 beats per minute in order to reduce forward flow during valve deployment. For a self-expanding valve, the heart need only be paced at 100–120 beats per minute to stabilize the valve. Device position, expansion, paravalvular leak (PVL), and coronary perfusion are assessed using a combination of fluoroscopy and echocardiogram. After confirming satisfactory valve deployment, the delivery system is withdrawn from the left ventricle followed by catheter and sheath removal.
The delivery system and sheaths are removed from the axillary artery. For open access, the axillary artery is clamped both proximally and distally and repaired using interrupted 5-0 Prolene sutures. Protamine is given following confirmation of intact repair. Care is taken to manage and tack all layers in case the artery is dissected. Endarterectomy may be needed in severe cases.
For percutaneous access, an appropriately sized peripheral balloon is advanced into the left axillary artery via the right femoral artery sheath and inflated to as low a pressure as possible (1–4 atmospheres) at the percutaneous insertion site to allow dry closure. This maneuver is performed to aid hemostasis and to ensure vascular control in the event of an access complication. Protamine is instituted and the Perclose Proglide devices are tied down over a wire at the insertion site to maintain vessel access. The wire is removed, and manual pressure is applied against the second rib. A completion angiogram is performed to ensure hemostasis, rule out vascular injury, and confirm patency of the left axillary artery (Figure 11). In case of residual bleeding, the vessel can be compressed against the thoracic cage to obtain hemostasis or a balloon can be used to tamponade the vessel.
Next, the femoral artery sheath is removed and the Perclose device is used for closure. The femoral venous sheath is removed, and manual pressure is applied to achieve hemostasis. Finally, the cerebral protection device, if used, is removed along with the radial artery sheath. A TR band (Terumo Interventional Systems, Somerset, NJ) is placed on the wrist to obtain hemostasis at the radial artery access site.
The TAx approach is a rapidly growing alternative for TAVR when advanced peripheral arterial disease precludes the common femoral artery as a suitable access site. According to a recent TVT Registry report by McCabe et al., a total of 63,581 patients underwent TAVR across the United States with the SAPIEN 3 device between June 2015 and February 2018 (6). Of those, 3,628 (5.7%) patients underwent non-TF TAVR (6). TAx-TAVR accounted for 1,249 (34.4%) of those alternative access cases. The major vascular complication rate for TAx-TAVR was 2.5%. When compared to traditional alternative access routes (trans-apical and trans-aortic), TAx-TAVR had lower 30-day mortality rates (5.3% vs. 8.4%, P<0.01) as well as shorter intensive care unit and hospital lengths of stay, and lower incidence of new onset atrial fibrillation (Table 2). The stroke rate, however, was higher for the TAx group compared to trans-apical and trans-aortic (6.3% vs. 3.1%; P<0.05). For this reason, our preference is to utilize the left axillary approach, reserving the right side for use of a Sentinel embolic protection device.

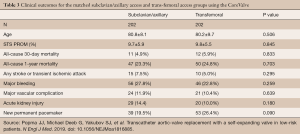

Similar outcomes have been achieved with self-expanding delivery systems. For example, Gleason et al. demonstrated equivalent morbidity and mortality rates with TAx-TAVR compared to TF-TAVR using the Medtronic CoreValve (3). Clinical event rates including 30-day mortality, stroke, major bleeding, and major vascular complications were similar between the two groups (Table 3) (3). These encouraging results suggest that TAx-TAVR should be the preferred secondary access site for TAVR as it offers comparable outcomes to TF-TAVR.

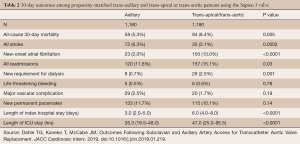

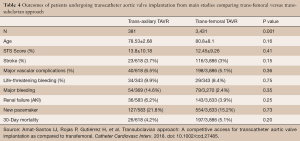

A meta-analysis conducted by Amat-Santos et al. investigated whether or not TAx-TAVR provides similar outcomes to TF-TAVR (13). They found no difference in 30-day mortality (4.2% vs. 5.2%, P=0.20), stroke (3.7% vs. 3%, P=0.15), or major vascular complications (6.5% vs. 5.2%, P=0.36) between TAx and TF respectively (Table 4) (13). Their results suggest that not only is TAx-TAVR a suitable alternative to TF-TAVR, it may even be the preferred choice (13).
Advantages and disadvantages
The primary benefit associated with TAx-TAVR is that it avoids a thoracic incision and eliminates the need for entry into the pericardial space or thoracic cavity. The axillary cut down technique is familiar to cardiac surgeons since it is commonly used as a cannulation site for open heart surgery. Moreover, the percutaneous TAx-TAVR access technique allows for a completely percutaneous approach under conscious sedation (11,14,15).
A major limitation associated with percutaneous TAx-TAVR involves the lack of compressibility of the axillary artery. This can often be dealt with by compressing the vessel against the thoracic cage. However, if the puncture is deep, it is problematic and can be difficult to obtain hemostasis after removal of the sheath. Although life-threatening bleeding and major vascular complications are rare, placement of a peripheral stent may be necessary. In a worst-case scenario, conversion to an open procedure may become necessary. It is vital to maintain wire access in case balloon tamponade is needed. Hematomas at the percutaneous access site are not uncommon and can occur immediately or within a few days after TAVR. In general, they can be managed conservatively and typically resolve spontaneously over time.
Another major disadvantage is the high reported risk of stroke (6). The TVT registry reported that low-volume centers might have higher complication rates (6). With operator experience however, the risk may become lower (6). The use of the Sentinel device may decrease the incidence of stroke, but more data is necessary to draw a conclusion. Other alternative access sites such as trans-carotid and trans-caval approaches have shown promising results and may overcome the disadvantages of TAx-TAVR (16,17).
Patients with a past medical history of coronary artery bypass graft and a patent LIMA to left anterior descending artery bypass graft present a technical challenge that must be taken into consideration before deciding to proceed with TAx-TAVR (18). Our experience has been that if the diameter at the LIMA takeoff is larger than the minimal required diameter for the specific device, the incidence of myocardial ischemia is extremely rare. Nonetheless, electrocardiogram monitoring should be used during the advancement of the large-bore sheath down the subclavian artery to ensure adequate perfusion to the territory perfused by the LIMA (18). Systolic blood pressure should also be kept higher, ideally greater than 100 mmHg, to maximize perfusion of the LIMA (18).
Advancements in alternative access techniques, TAVR technologies, and preference for a less invasive approach have allowed the application of TAx-TAVR to grow rapidly among patients with prohibitive femoral access. Surgeon familiarity with the axillary artery and the possibility of a percutaneous approach has made this procedure more popular. The reported outcomes have shown this to be a safe procedure, though further efforts to decrease the rate of stroke are needed.
