Heart failure (HF), as a leading global disease, is an advanced clinical stage of cardiovascular disease with severe cardiac dysfunction. It is estimated that over 37.7 million people worldwide suffer from HF, the incidence and mortality of which continue to increase (1). Although orthotopic heart transplantation (HTx) is indeed an effective treatment, it cannot satisfy the demands of patients due to the paucity of and prolonged waiting time for donor hearts (2).
The left ventricular assist device (LVAD), including pulsatile-flow LVAD and continuous-flow left ventricular assist device (CF-LVAD), has been widely used because it significantly reduces mortality and improves quality of life, as compared to medical therapy alone (3,4). Pulsatile-flow LVADs mainly refer to first-generation LVADs, such as Heartmate XVE and Novacor (5). With the gradual advancement of equipment, CF-LVADs have since become the main LVADs, due to their miniaturization and improved durability, including those of second- and third-generation devices. Second-generation LVADs, like Heartmate II, pump blood through axial-flow technology (6), while third-generation LVADs apply a centrifugal-flow pattern with magnetically levitated forces, including Heartmate III and Heartware HVAD (7,8). However, there is no clear and consistent understanding of the longer therapeutic effects of CF-LVAD and HTx (2,9). We conducted a systematic review and meta-analysis to compare the clinical outcomes of HTx and CF-LVAD as a bridge to transplantation (BTT) or destination therapy (DT). According to our analytic results, we discuss the future direction of HF treatment.
Search strategy and selection criteria
The systematic review and meta-analysis of observational studies was performed in accordance with the Meta-analysis of Observational Studies in Epidemiology (MOOSE) guidelines (10). We searched controlled trials from PubMed, Cochrane Library, and Embase databases until July 1, 2020. The language was limited to English. The specific searching strategy was as follows: (“heart failure” OR “cardiac failure” OR “heart decompensation” OR “decompensation, heart” OR “myocardial failure”) AND (“heart-assist devices” OR “heart assist device” OR “artificial heart” OR “device, heart-assist” OR “devices, heart-assist” OR “heart assist devices” OR “heart-assist device” OR “pumps, heart-assist” OR “heart-assist pump” OR “heart-assist pumps” OR “pump, heart-assist” OR “pumps, heart assist” OR “artificial ventricle” OR “artificial ventricles” OR “ventricle, artificial” OR “ventricles, artificial” OR “ventricle-assist device” OR “device, ventricle-assist” OR “devices, ventricle-assist OR “ventricle assist device” OR “ventricle-assist devices” OR “ventricular assist device” OR “assist device, ventricular” OR “assist devices, ventricular” OR “device, ventricular assist” OR “devices, ventricular assist” OR “ventricular assist devices” OR “heart ventricle, artificial” OR “artificial heart ventricle” OR “artificial heart ventricles” OR “heart ventricles, artificial” OR “ventricle, artificial heart” OR “ventricles, artificial heart” OR “LVAD” OR “left ventricular assist device” OR “VAD” OR “mechanical circulatory support” OR “mechanical circulatory support device” OR “mechanical circulatory support devices”) AND (“heart transplantation” OR “heart transplant” OR “cardiac transplant” OR “grafting, heart” OR “graftings, heart” OR “heart grafting” OR “heart graftings” OR “transplantation, heart” OR “heart transplantations” OR “transplantations, heart” OR “cardiac transplantation” OR “cardiac transplantations” OR “transplantations, cardiac” OR “transplantation, cardiac).
The trials were based on the following inclusion criteria: (I) cohort and controlled trials comparing orthotopic HTx with CF-LVAD as a BTT or DT; (II) trials respectively reported mortality or survival data of different groups; (III) whether CF-LVAD was used as a BTT or DT was clearly stated; (IV) only the study with more patients should be included if two or more studies from the same institution have reported duplicate outcomes. The exclusion criteria were: (I) the study population was mainly composed of infants or children; (II) study did not perform a head-to-head comparison; (III) research focused mainly on pulsatile-flow LVADs or total artificial heart; (IV) low-quality abstracts or articles without impact factors. Two authors (B.Z. and S.G.) scrutinized all examined articles independently and disagreements were resolved by discussing with an external third author (Z.L.).
Quality assessment and data extraction

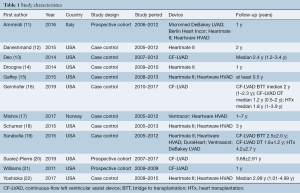

The following data was collected: first author, year of publication, country, study design, study period, baseline characteristics (gender, etiology, the sample size of each group), the type of LVAD, and follow-up period. We extracted the original data of the follow-up period from Kaplan-Meier survival curves, if they could not be obtained from the original article. According to the survival rate or mortality, we calculated the number of deaths at different time points in each group. Table 1 and Table 2 detail the specific data of each study. The quality of the included literature was assessed according to the Newcastle-Ottawa Scale (NOS). This scale was divided into three parts: selection (4 points), comparability (2 points), and outcome (3 points), including 7–9 points for low risk, 4–6 points for medium risk, and 0–3 points for high risk. The details of the NOS quality assessment are shown in Table S1. Two researchers (B.Z. and S.G.) separately performed a quality assessment and data extraction. Any conflicts were resolved by consensus and further discussion with a third reviewer (Z.L.).
We set various time points to evaluate mortality more accurately. One-year, two-year, three-year, and five-year mortality rates were analyzed in the comparison of CF-LVAD BTT versus HTx, while one-year and two-year mortality were analyzed in the comparison of CF-LVAD DT versus HTx. The primary outcomes were mortality at different time points. In addition, the adverse events of CF-LVAD versus HTx were also analyzed, including stroke, bleeding, and infection. BTT included patients undergoing a CF-LVAD to preserve life, who would otherwise be at high risk of death before transplantation unless a donor organ were to become available. DT was defined as using a CF-LVAD as an alternative to HTx in patients ineligible for transplantation or on the waiting list for a donor heart over an extensive time period. Stroke included post-operative ischemic and hemorrhagic cerebrovascular accidents. Bleeding was defined as peri-operative hemorrhage requiring re-operation. Infection was defined as deep sternal infection or sepsis. The data results of dichotomous variables are present as pooled odds ratios (OR) with 95% confidence intervals (CI). We used the I2 test to assess the heterogeneity among the studies. The heterogeneity was considered significant if I2 was >50%. A fixed-effects model was used if no significant heterogeneity was detected; otherwise, a random-effects model was used to pool the data. We evaluated publication bias with Egger’s test for primary outcomes. An absence of publication bias was considered when the P value was >0.05. We conducted subgroup analyses, sensitivity analysis, and meta-regression to evaluate the influence of individual studies and potential sources of heterogeneity. We performed statistical analysis with Review Manager 5.3 and Stata 16.

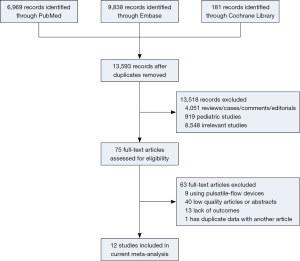

In total, 16,988 publications were identified from the three databases, twelve of which (11-22) met the inclusion criteria (details shown in Figure 1). Four studies (14,16,17,19) simultaneously reported data on BTT versus HTx and DT versus HTx, while seven trials (11,13,15,18,20-22) only showed the results of BTT versus HTx, and one study (12) performed the comparison of DT versus HTx alone. Yoshioka et al. (22) and Sorabella et al. (19) are from the same institution and have both reported on data of CF-LVAD BTT versus HTx. Therefore, 10 of the eligible studies (11,13-18,20-22) were included in the comparison of CF-LVAD BTT versus HTx, and five of them (12,14,16,17,19) reported on the results of CF-LVAD DT versus HTx. A total of 26,737 patients (8,503 underwent CF-LVAD as a BTT, 235 underwent CF-LVAD as a DT, 17,999 underwent HTx) were included in our research for quantitative analysis of post-operative adverse events and mortality at different time points. No publication bias for primary outcomes was presented, according to Egger’s test (Figure S1).

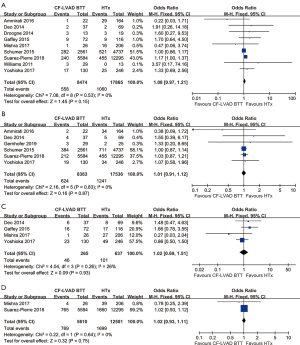

The mortality of CF-LVAD BTT versus HTx
There was no significant difference in the one-year (OR =1.08; 95% CI: 0.97–1.21; P=0.15; I2=0; Figure 2A), two-year (OR =1.01; 95% CI: 0.91–1.12; P=0.87; I2=0; Figure 2B), three-year (OR =1.02; 95% CI: 0.69–1.51; P=0.93; I2=26%; Figure 2C), and five-year (OR =1.02; 95% CI: 0.93–1.11; P=0.75; I2=0; Figure 2D) mortality between CF-LVAD BTT and HTx.

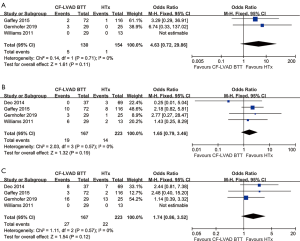

Adverse events of CF-LVAD BTT versus HTx
No significant differences were found in stroke (OR =4.63; 95% CI: 0.72–29.86; P=0.11; I2=0; Figure 3A), bleeding (OR =1.65; 95% CI: 0.79–3.46; P=0.19; I2=0; Figure 3B), and infection (OR =1.74; 95% CI: 0.86–3.52; P=0.12; I2=0; Figure 3C) in the comparison of CF-LVAD BTT versus HTx.

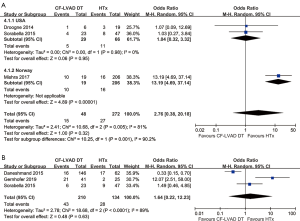

The mortality of CF-LVAD DT versus HTx
The pooled analysis of one-year mortality (OR =2.76; 95% CI: 0.38–20.18; P=0.32; I2=81%; Figure 4A) and two-year mortality (OR =1.64; 95% CI: 0.22–12.23; P=0.63; I2=89%; Figure 4B) showed no significant difference between CF-LVAD DT and HTx. According to the country, subgroup analysis was performed due to high heterogeneity in one-year mortality. In the USA group, there was no significant difference in one-year mortality (OR =1.04; 95% CI: 0.32–3.32; P=0.95; I2=0; Figure 4A). Regarding two-year mortality, sensitivity analysis and meta-regression did not identify any determinants that were able to explain the heterogeneity (Figure S2).

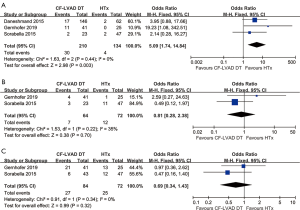

Adverse events of CF-LVAD DT versus HTx
The incidence of stroke (OR =5.09; 95% CI: 1.74-14.84; P=0.003; I2=0; Figure 5A) was higher for CF-LVAD DT than for HTx. There was no significant difference in bleeding (OR =0.81; 95% CI: 0.28–2.38; P=0.70; I2=35%; Figure 5B) or infection rates (OR =0.69; 95% CI: 0.34–1.43; P=0.32; I2=0; Figure 5C) in the comparison of CF-LVAD DT versus HTx.
To our knowledge, this study is the first meta-analysis to compare clinical outcomes between CF-LVAD and HTx for the treatment of patients with HF. CF-LVADs have become the main application in use, so the pulsatile-flow pumps were excluded, which was not considered in previous meta-analyses. Additionally, all the included studies were from institutions that could perform both CF-LVAD implantation and HTx in order to avoid the influence of external interests. The opinions of the included studies were discrepant, so the factors that affect HF patients' prognosis were discussed from various perspectives.
No significant differences were found in both mortality at different time points and adverse events between HTx and CF-LVAD BTT. However, previous reported mortality or survival rates differ among current studies (11,15,23,24), in the comparison of HTx and CF-LVAD BTT. The reasons behind any inconsistencies in results within this meta-analysis are as follows. First, the duration of LVAD support differed among the included studies, for the time of HTx after CF-LVAD as a bridge depends significantly on when donors are available. Excessive duration of LVAD as a bridge may reduce patient survival (25). Secondly, the evaluation and utilization of marginal donors vary among medical centers and experts (26), although LVAD as a BTT has positive effects on the avoidance of marginal donor hearts. Thirdly, there was selection bias between groups among observational studies. In other words, more severely ill patients were less likely to survive if they had received HTx instead of CF-LVAD as a BTT at that time (27). Overall, CF-LVAD BTT can bring excellent outcomes comparable to HTx.
Our meta-analysis showed similar one-year and two-year mortality between CF-LVAD DT versus HTx. The centers varied in the initial time of performing the LVAD implantation, leading to differences in the experience of surgical techniques and patient management. Therefore, subgroup analysis was performed according to the country that was considered the main reason for data inconsistency in one-year mortality. Although we performed a comprehensive assessment of the available information, the heterogeneity of two-year mortality between DT and HTx is difficult to explain due to the limitation of published data in original articles. We assume that it is mainly related to differences in donor heart evaluation and use in various hospitals. Marginal donors with left ventricular hypertrophy, older age, long cold ischemic time or low left ventricular ejection fraction had adverse effects on post-transplant prognosis (26,28). Due to the paucity of data on mortality or survival rates for over two years within included studies, the long-term outcomes after CF-LVAD as a DT versus HTx were not assessed. However, CF-LVAD as a DT was inferior to HTx with respect to longer survival rates, according to the database of the Interagency Registry for Mechanically Assisted Circulatory Support and the International Thoracic Organ Transplant Registry of the International Society for Heart and Lung Transplantation (24-27). The lower survival of CF-LVAD as a DT is linked to device-related complications and psychosocial disturbance (29,30). Considering device-related complications, apart from stroke, another important consideration is whether the aortic valve can tolerate the long-term hemodynamic changes after LVAD implantation is also a challenge for CF-LVAD as a DT (31). During LVAD support, aortic regurgitation may occur due to the excessive decrease in left ventricular pressure (32). Atkins et al. suggested that the aortic valve needed to be repaired or replaced if new-onset aortic valve insufficiency occurred during the LVAD support (33). On the other hand, some patients felt living life with LVAD as a DT did not meet their previous expectations of quality of life (34). Improving patient satisfaction with quality of life remains critically important, particularly for patients requiring long-term LVAD support. Close cooperation of telemedicine and remote monitoring could be beneficial to improve patients’ quality with life and reduce psychosocial distress (35-37). With the continuous development of LVAD and the advancement of operative approaches, complications can be further reduced, so as to reduce the mortality of LVAD as a DT. The long-term outcomes for CF-LVAD as a DT remain to be defined in future studies.
CF-LVAD as a DT brought a higher risk of stroke and similar results of bleeding and infection compared with HTx. The higher incidence of stroke is associated with pump thrombosis and the duration of LVAD support. Longer duration of LVAD support increased the risk of stroke (38). In addition, the median waiting time for a donor heart was 6.9 months (39). In other words, many patients in CF-LVAD BTT can undergo HTx during LVAD support of less than a year duration. This is the main reason for our results demonstrating a higher incidence of stroke in CF-LVAD DT rather than in CF-LVAD BTT. Stroke, as a severe disabling complication, had negative effects on the quality of life and led to lower survival (38). Therefore, more strict control of anti-coagulant and anti-platelet therapy are required. Regarding adverse events, some studies have demonstrated that minimally invasive methods without sternotomy markedly promoted recovery and decreased partial complications (40,41). However, the technical difficulty of minimally invasive methods limits their wide implementation. Further investigation is necessary to decrease the risks of devastating adverse events during long-term LVAD support.
This study has several limitations. First, our meta-analysis is based on observational studies. Only a few studies compare the clinical results of LVAD implantation and HTx directly, most of which are case-control studies with information bias, selection bias, and confounding bias. Second, the criteria of the donor hearts differed among various centers. Third, meta-regression did not identify the factor of heterogeneity for two-year mortality between CF-LVAD DT and HTx. Lastly, long-term mortality after CF-LVAD as a DT versus HTx was not performed because of the paucity of adequate data.
In conclusion, CF-LVAD as a BTT results in similar outcomes as HTx within five years. CF-LVAD as a DT is associated with similar one-year and two-year mortality, but a higher risk of stroke, as compared with HTx. With the development of heart-assist devices and the emergence of new techniques, the long-term outcomes for CF-LVAD as a DT remain to be defined in future studies.
Funding: This work was supported by the Natural Science Foundation of Tianjin City (18JCZDJC36200 to Zhigang Liu).
Conflicts of Interest: The authors have no conflicts of interest to declare.
