Surgical ablation of atrial fibrillation during mitral valve surgery: a systematic review and meta-analysis

Introduction

Atrial fibrillation (AF) is a common tachyarrhythmia, affecting approximately 33 million people worldwide (1,2). Mitral valve disease, in particular, has a strong association with AF, with 30–40% of patients developing AF in the context of mitral valve disease (3). The most common association is with mitral stenosis, which produces dilatation and fibrosis of the left atrium due to volume overload (4). Left atrial dilatation produces a further challenge, as it is resistant to ablation, particularly if the diameter exceeds 60 mm (5). There are a number of benefits associated with performing AF ablation at the same time as mitral valve surgery, including improved freedom from AF (FFAF), and quality of life (6,7) It provides an opportune moment for direct epicardial and endocardial lesion sets on the atria. Furthermore, the left atrial appendage (LAA) may be ligated concurrently, further reducing the incidence of thromboembolism (8).

A number of surgical approaches enable AF ablation concomitantly with mitral valve surgery. The gold standard approach is the Cox-Maze procedure, developed in 1992, which utilizes a series of lesions on the left and right atrium. The creation of a “maze” of incisions on both the atria interrupt the circuits responsible for the creation and propagation of AF (9). Earlier iterations of the Cox-Maze procedure utilized “cut and sew” lesions, whereas later iterations (namely the Cox-Maze IV procedure) utilise energy sources to create lesions. The Cox-Maze IV procedure reports excellent long-term (10-year) FFAF of 77% (10). Utilizing the Cox-Maze procedure in conjunction with mitral valve surgery has been the topic of recent randomized control trials, with one notable trial demonstrating a significantly higher FFAF when compared to mitral valve surgery alone (11). Concomitant surgical ablation of AF during valvular surgery has also been shown to be safe, with large registry data demonstrating that it does not increase operative mortality but may in fact be associated with a reduction in relative mortality compared to patients who do not undergo concomitant ablation (12).

Despite the large body of evidence supporting AF ablation during mitral valve surgery, the American Heart Association (AHA) provided a 2a recommendation in 2020 for surgical correction of AF during valvular heart surgery (13). This was echoed by the 2021 European Society of Cardiology (ESC) providing level 2a evidence for concomitant ablation and LAA exclusion (14). The aim of this systematic review and meta-analysis is to evaluate the efficacy of concomitant AF ablation during mitral valve surgery. The primary outcome was FFAF. The secondary aim is to evaluate the safety profile of concomitant ablation.

Methods

Literature search strategy

Five electronic databases were used to perform the literature search, including MEDLINE, EMBASE, Cochrane Central Register of Controlled Trials, Cochrane Database of Systematic Reviews (CDSR) and SCOPUS. These databases were searched from inception to the 5^th of March 2023. The search strategy included a combination of keywords and Medical Subject Headings (MeSH), including “Ablation” OR “Maze” OR “Cryomaze” OR “Cryo” AND “Atrial Fibrillation” AND “Mitral Valve”. Predefined criteria for selection were used to assess all articles. The article was written in accordance with Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) recommendations (15). The PRISMA flowchart is outlined in Figure S1. Two reviewers (A.E and B.M) independently screened the abstracts of all identified records. Included titles were then reviewed with a full-text copy by the same two reviewers. Any conflicts were resolved with a third independent reviewer (A.W.S.). The reference list of selected studies was manually searched to identify any additional titles, not identified by the electronic search.

Selection criteria

Studies were eligible for inclusion if they included a patient population that underwent AF ablation concomitantly with mitral valve surgery. Mitral valve surgery was deemed to be any operation involving the mitral valve as the primary pathology (e.g., mitral stenosis or regurgitation), through an open chest approach (sternotomy or thoracotomy). AF ablation was defined as any cut/sew lines, radiofrequency, or cryoablation performed on the heart (i.e., either epicardial or endocardial). In order to minimise the risk of publication bias associated with smaller studies, only those with 100 or more patients were included. The inclusion criteria were: (I) AF ablation concurrently with mitral valve surgery; (II) mitral valve surgery as the primary pathology and indication for surgery; (III) cohort sizes >100 patients; (IV) open chest procedure through either a sternotomy or thoracotomy; (V) FFAF reported; (VI) published after 2000. Studies which reported concomitant aortic valve surgery and coronary artery bypass grafting (CABG) were included as long as mitral valve surgery was the primary indication. Studies that had mixed populations that did not delineate between pathologies were excluded. Studies which performed mitral valve surgery through a closed chest approach (robotic mitral valve surgery) were also excluded. When trials/registries/institutions published duplicate studies with extended length of follow-up or larger study populations, the most updated and complete study was included. Included studies were limited to those in English and only involving human subjects. Abstracts, case reports, conference presentations, editorials, and reviews were excluded.

Outcomes

The primary outcome was defined as FFAF (i.e., sinus rhythm maintenance postoperatively). Subgroup analysis was performed based on study design, rheumatic etiology, type of AF, lesion sets utilized, and enlarged left atria (LA; greater than 60 mm). Secondary endpoints were short-term mortality (in-hospital or 30-day mortality), postoperative stroke, reoperation for bleeding, and pacemaker insertion over the follow-up period.

Data extraction and statistical analysis

Two independent reviewers (A.E and B.M) extracted data directly from publication texts, tables, and figures. A third reviewer (A.W.S.) independently reviewed and confirmed the integrity of all extracted data. Attempts were made to clarify missing data with the authors. For baseline variables, nominal data was recorded as number of events (n) and expressed as a percentage. Continuous variables were either expressed as a mean and standard deviation (SD) or median and interquartile ranges (IQR). For statistical analysis, medians and IQR were first converted to mean and SD utilising the method outlined by Wan et al. (16). When data was exactly uniform, the SD was listed as zero. Statistical analysis was carried out using Stata^® (Version 17.0, StataCorp, Texas, USA). Baseline continuous data was collated using the “metan” function and the pooled result expressed as a weighted mean (n) and 95% confidence interval (CI). Nominal data was collated and expressed as a proportion and percentage. To summarize outcome data, a meta-analysis of proportions was performed using the “metaprop” function, with a Freeman-Tukey arcsine transformation. A random effects model was utilized to account for varied study design, experience of the surgeons, center protocol, and population. Results were expressed as forest plots where appropriate, with cumulative proportion expressed as a single percentage. The influence of energy source and lesions sets on the primary outcome was explored utilizing the “metaprop”, “by(group)” function. Heterogeneity was assessed using the I² test statistic. Low heterogeneity was denoted by I²<50%, moderate heterogeneity by I²=50–74%, and high heterogeneity by I²≥75%. Statistical significance was denoted by P<0.05. Kaplan-Meier survival curves were digitized where numbers at risk were presented, and an algorithmic computational tool was utilized to derive individual patient data as outlined by Guyot et al. (17). Event and censoring data were compiled for 5 years, and overall survival curves were produced with Stata^® (Version 17.0, StataCorp).

Assessment of bias and heterogeneity

Publication bias was assessed through visual inspection of funnel plots and Begg’s rank correlation test in Stata MP^®. A trim-and-fill analysis was performed in the instance of publication bias. An influential study analysis with adjusted effect sizes and heterogeneity was computed after the omission of each study. The risk of bias was performed utilising two tools: the Risk of Bias in Non-randomized Studies of Interventions (ROBINS-I) tool for cohort studies and the Risk of Bias in Randomized trials (RoB2) tool for randomized studies.

Results

Study characteristics

The literature search identified a total of 4,365 studies (Figure S1). No additional articles were identified after manual searches of reference lists. After removing duplicates, a total of 3,266 articles were screened. After full review, 36 studies with 8,340 patients were included in the systematic review (Table 1). The majority of papers were cohort studies, of which six were prospective, 28 were retrospective, and two were randomized trials. The cohort sizes ranged from 100 to 812 patients. The recruitment years for patients ranged from 1994 to 2021. The majority of papers examined a cohort of patients with AF and mitral valve disease in general, whereas seven papers examined a cohort of patients with AF and rheumatic mitral valve disease exclusively (19,23,24,26,29,39,40). The weighted mean follow-up period was 42.2 months (95% CI: 33.0–51.4), with a weighted mean reported follow-up of 40.2 months (95% CI: 32.8–47.6). Study data was is summarized in Table 1.

Baseline demographic data

All studies reported baseline demographic data. The weighted mean age of patients was 57.2 years (95% CI: 54.7–59.8) and 46.5% were male. The majority of patients had persistent AF (82.5%), and 17.5% of patients had paroxysmal AF. The weighted mean duration of AF preoperatively was 50 months (95% CI: 46.1–53.9), and weighted mean ejection fraction (EF) of 55.5% (95% CI: 53.7–57.1%). The weighted mean LA diameter was 55.7 mm (95% CI: 42.5–59.1) and four studies reported a mean LA diameter greater than 60 mm (19,21,29,50). These results are summarized in Table 2.

Operative data

Operative data was variably reported. The majority of patients underwent a sternotomy (94.7%) and 5.3% underwent a mini-access procedure through a thoracotomy. A slight majority of patients (54.8%) underwent a mitral valve replacement, and 45.2% of patients underwent a mitral valve repair; 56.9% of patients had rheumatic etiology for mitral valve disease. In terms of concomitant procedures, 8.7% of patients underwent CABG and 14.9% underwent an aortic valve replacement (AVR). The energy source used was reported by all studies. Ten studies utilized cryoablation alone, and 17 studies utilized radiofrequency ablation alone. One study utilized a harmonic scalpel, and two studies utilized cut and sew lesions. The remaining studies used a combination of energy sources. A bi-atrial lesion set or bi-atrial maze (BAM) was exclusively utilized by 19 studies, whereas a left atrial maze (LAM) was utilized by 7 studies. An isolated pulmonary vein isolation (PVI) was performed by two studies. The remaining studies used a combination of lesion sets within their patient cohorts. Left atrial reduction was performed by only eight studies. The main indication for this was an enlarged left atrium. Finally, LAA exclusion was reported by most studies, and performed in the entire cohort in 21 studies. The cardiopulmonary bypass time (CPBT) and cross clamp times (CCT) were variably reported, with a weighted mean of 142 min (95% CI: 132–152) and 98 min (95% CI: 92.7–103.3) respectively. Procedural characteristics are summarized in Table 3. In terms of postoperative protocol, the use of antiarrhythmic drugs (AADs) and anticoagulation varied greatly and remained study specific. The majority of studies utilised amiodarone and continued it for at least 3 months. The most common oral anticoagulation agent used was warfarin. Only two studies specified the cessation of warfarin if patients were in sinus rhythm (18,38) (Table S1).

Primary endpoint

All 36 papers reported postoperative FFAF. The pooled freedom from AF (FFAF) was 76.9% (95% CI: 73.8–79.9%) at a weighted mean follow-up of 40.2 months (95% CI: 32.8–47.6). This result was associated with large heterogeneity (I²=89%; Figure 1). The corresponding FFAF off AAD was 75.9% (95% CI: 68.7–82.5%), with significant heterogeneity (I²=92.7%). Seven studies reported long-term data (greater than 5 years) with a weighted mean follow-up of 103.8 months (95% CI: 91.5–116.2), and an FFAF of 66.9% (95% CI: 57.1–76.0%). This result was associated with significant heterogeneity (I²=91%).

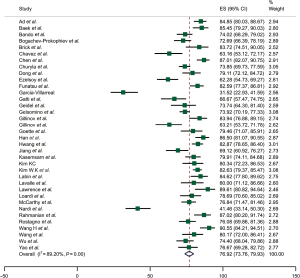

Figure 1 Freedom from atrial fibrillation. ES, effect size; CI, confidence interval.

Subgroup analysis did not demonstrate a significant difference in FFAF between studies opting to use cryoablation and radiofrequency only. Based on lesion sets, a BAM demonstrated the highest FFAF (80.6%), followed by LAM (69.8%) followed by PVI (53.7%) which was statistically significant (P<0.001). When stratified based on LA volume reduction, studies which performed LA volume reduction demonstrated higher FFAF of 83.2% compared to cohorts which did not (74.9%) (P<0.001).

Secondary endpoints

A total of 31 studies reported postoperative short-term mortality, with a pooled result of 1.68% (95% CI: 1.15–2.29%). This result was associated with moderate heterogeneity (I²=67%; Figure 2). Twenty-eight studies reported postoperative stroke with a pooled result of 0.99% (95% CI: 0.60–1.46%), This result was associated with moderate heterogeneity (I²=56%; Figure S2). Twenty-five studies reported postoperative return to theater for bleeding, with a pooled result of 2.78% (95% CI: 1.78–3.97%). This result was associated with high heterogeneity (I²=82%, Figure S3). Thirty-three studies reported pacemaker insertion postoperatively, with a pooled incidence of 3.99% (95% CI: 2.64–5.58%). This result is associated with high heterogeneity (90.2%; Figure S4). Outcome data is summarized in Table 4.

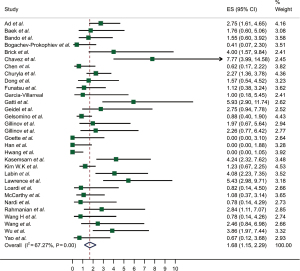

Figure 2 Short term mortality. ES, effect size; CI, confidence interval.

Survival curve analysis

Aggregation of overall survival was performed on six of the included studies. Overall survival at 1 to 5 years was 93.7%, 92.5%, 91.3%, 89.4% and 87% respectively (Figure 3). Aggregate FFAF was performed in 10 of the included studies. Overall FFAF at 1 to 5 years was 90.2%, 83.5%, 79.5%, 76.4% and 73.2% respectively (Figure 4).

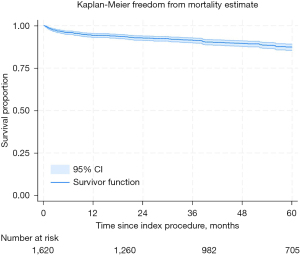

Figure 3 Survival curve for mortality. CI, confidence interval.

Figure 4 Survival curve for freedom from AF. CI, confidence interval; AF, atrial fibrillation.

Study quality and bias assessment

Leave-one-out analysis highlighted the potential effects of two studies (29,46) (Figure S5). As such, the omission of these two studies increased FFAF to 78.9%, and marginally improved heterogeneity (I²=80%). There was potential evidence of publication bias on visual inspection of funnel plots for the primary outcome, with two smaller studies producing a smaller effect size (Figure S6). This result was not significant on Egger’s test for small-study effects (P=0.163). There was no evidence of publication bias on visual inspection of funnel plots for short-term mortality (Figure S7). The ROBINS-I tool was applied to 34 studies, with the majority of studies scoring “moderate” in terms of risk of bias. Five studies scored a “serious” risk of bias and four studies scored a “low” risk of bias, reflecting the largely retrospective nature of the cohort studies included. The RoB2 tool was applied to the two randomized studies included within this analysis, with one study demonstrating a “low” risk and the second demonstrating “some concerns” with respect to bias. These results are visually represented in Figures S8,S9.

Discussion

AF has a significant association with mitral valve disease. Surgical ablation during mitral valve surgery provides an opportune circumstance for simultaneous arrhythmia correction. Randomised trial evidence demonstrates that it is both efficacious and safe. Gillinov et al. demonstrated an FFAF at 63.2% 12 months postoperatively, compared to 29.4% in those receiving mitral valve surgery alone (11). This was associated with a mortality rate of 6.8%, which did not vary significantly from mitral valve surgery alone (8.7%). A Cochrane review of 22 randomised control trials demonstrated a freedom from atrial tachyarrhythmia of 51% in patients undergoing concomitant ablation compared to 24.1% in those who underwent mitral valve surgery alone (6). AF ablation may also be associated with a long-term survival benefit. One multicentre study demonstrated a 5-year survival advantage in patients undergoing concomitant AF ablation during cardiac surgery, adjusted for baseline covariates (53). Despite the body of evidence supporting AF ablation during mitral valve surgery in patients with AF, there remains poor uptake among surgeons, with 61.5% of surgical ablations being performed concomitantly with mitral valve surgery in the United States (54,55). Currently, the Society of Thoracic Surgeons (STS) provides a class 1 indication for surgical ablation at the time of concomitant mitral operations, isolated AVR, isolated CABG, and AVR plus CABG (56). Both the AHA and ESC provide level 2a evidence for concomitant ablation during cardiac surgery (13,14).

The results of this study demonstrate an FFAF of 76.9% at a mean follow-up of 40.2 months. This result suggests a superior FFAF at a later time point than previously reported in systematic reviews (6,7). This study also demonstrates that the success of the procedure may be sustained, with an FFAF of 66.9% at 103.8 months and an aggregate FFAF of 73.2% at 5 years on analysis of survival data. An explanation for this result may be the inclusion of a number of contemporary studies, with newer iterations of the maze procedure and lesion sets. These results were associated with significant heterogeneity, which is indicative of the different experience of the involved surgeons, lesion sets utilized, baseline characteristics of the patients, and variable follow-up protocols. We attempted to mitigate this as much as feasible by the inclusion of larger studies (>100 patients). Concomitant AF ablation is also safe, with a pooled short-term mortality of 1.68% This result also demonstrates a lower mortality than previously reported; Phan et al. reported a pooled 30-day mortality of 4.4%, and Huffman et al. reported 2.3% (6,7). Complications are also uncommon, with a pooled stroke rate of 1% and pacemaker rate of 3.99%. Pacemaker insertion is significantly higher amongst patients undergoing surgical ablation with mitral valve surgery than mitral valve surgery alone (7). Contemporary randomised data with long-term follow up can further verify these results.

The Cox-Maze procedure remains the gold standard for the surgical treatment of AF, employing a bi-atrial lesion set (57). Key components of the maze procedure include en-bloc isolation of the pulmonary veins, a connecting lesion to the mitral annulus, extensive right atrial lesions, and excision of the LAA (58). In order to reduce procedural times and postoperative conduction issues, less extensive lesion sets have been adopted to target the left atrium only, with varying levels of efficacy (58). The addition of the right atrial lesions of the maze procedure reduces the occurrence of both AF and typical right atrial flutter (58). Issues with right-sided lesions include increased CPBT, and increased incidence of pacemaker implantation (6,7). This study demonstrated a statistically significant benefit in employing a BAM when compared to an LAM. Of note, a PVI alone conferred a poor FFAF, especially in the context of persistent AF (29). Two of the included studies within this review compared BAM to left-atrial maze, and one study compared BAM to PVI alone (11,25,32). Churyla et al. did not demonstrate a significant improvement in FFAF after the addition of a right atrial lesion set, whereas Gelsomino et al. did, demonstrating that a left atrial lesion set alone is independently associated with failure patients with persistent AF (25,32). Gillinov et al. demonstrated that PVI alone is associated with a significantly worse FFAF in a cohort of patients with persistent AF (11). Other studies which employed PVI alone in this cohort of patients demonstrated a poor FFAF (29). Paroxysmal AF is associated with higher frequency pulmonary vein activity than permanent AF, supporting the notion that focal triggers in the pulmonary vein are less important in patients with permanent AF (59). Therefore, in this cohort of patients, isolation of the pulmonary veins alone may not be efficacious. Further randomised evidence is required to discern the true long-term benefit of BAM.

The size of the left atrium affects the success of concomitant AF ablation. One theory alludes to the “critical mass” of the left atrium, whereby the greater the tissue surface area, the higher the possibility of sustaining AF (60). In addition, atrial remodelling most commonly seen in patients with AF with rheumatic heart disease reduces the refractory period of AF, which increases the probability of sustained AF (50). In this cohort of patients, concomitant left atrial reduction is important to ensure success. The findings of this review support this, with a higher FFAF recorded in patients undergoing volume reduction surgery. Of the included studies, Wang et al. demonstrated a FFAF of 76% at one year after aggressive bi-atrial reduction with a full maze, in a cohort of patients with giant LA (8.6 cm). It has been suggested by other studies that this strategy needs to be adopted when the maximal left atrial dimension exceeds 5.5 cm (61). The optimal energy source is a complex consideration. In this study, there was no significant difference between studies utilizing cryoablation vs. radiofrequency. In short, radiofrequency utilizes heat energy to apoptose cells, thus creating scar. It has been shown to be as effective as “cut and sew” lesions (62). A bipolar energy source has greater efficacy than unipolar devices. Cryoablation, on the other hand, creates ice crystals which produce acute disruption of cell membranes and local tissue ischemia. This mechanism has the benefit of preserving the fibrous skeleton and collagen structures and is safe around valvular tissue (30). This is consistent with previously published data, and highlights that regardless of energy source, transmural lesions are key (63).

A final consideration is the role of LAA closure at the time of surgery. This was variably conducted across the studies included within this review, with a total of 21 studies excluding the LAA in the entire patient cohort. Closure of the LAA has been demonstrated to reduce the incidence of thromboembolism in the postoperative setting and confers a class 2a recommendation with concomitant ablation in patients with a CHA₂DS₂-VASc score greater than two (8,14). There are a number of ways that the appendage can be excluded, including internal suture ligation, external ligation, or surgical excision. Despite this, echocardiographic evidence demonstrates that LAA elimination remains incomplete and goes undetected (64). Randomized evidence does not demonstrate a significant difference between these methods; however, it does advocate for the use of echocardiography at the time of operation to assess effectiveness (64). One potential benefit of AF surgery and LAA closure is the cessation of anticoagulation. The majority of studies continued anticoagulation in the postoperative period however we found these study protocols to be heterogenous and unclear if the indication was AF or mechanical/biological valves. Only two studies specified that they stopped oral anticoagulation if patients remained in sinus rhythm (18,38). There remains a paucity of evidence assessing the incidence of stroke risk following LAA exclusion/AF surgery vs. anticoagulation alone.

There are a number of important limitations to consider when interpreting the results described in this study. Firstly, the heterogeneity of the data. This could represent a number of different factors, such as the variable ablation lines, experience of operator(s), patient comorbidities, different energy sources and post-operative protocols. We also noted that studies inconsistently reported loss of follow-up, whereby some studies completed follow-up of 100% of patients and others demonstrated significant attrition. This leads to survivor bias and can skew results. There were also varying definitions of success across the studies; some utilized continuous monitoring, whereas others employed electrocardiograms (ECGs) which are snapshots in time. Single ECGs may be less sensitive in picking up atrial tachyarrhythmias and therefore underreport FFAF. Very few studies utilized AF burden calculations or continuous loop recorders. Lastly, the majority of studies were retrospective in nature and this is reflected in the risk of bias analysis with only four cohort studies being classified as a “low” risk of bias. Five studies demonstrated a “severe” risk of bias, particularly with regards to patient selection bias, reporting and loss of follow up. These issues can be ameliorated with further prospective or randomized data.

Conclusions

In summary, concomitant ablation of AF during mitral valve surgery is effective at maintaining FFAF, both in the mid- and long-term. It can be performed concomitantly to mitral valve surgery with low mortality and morbidity. The addition of right atrial lesion sets, in addition to atrial volume reduction surgery, may confer greater efficacy. There does not seem to be correlation between energy source and FFAF. Further high-quality randomized data is required to evaluate the long-term efficacy of concomitant ablation, especially comparing different lesion sets.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Chugh SS, Havmoeller R, Narayanan K, et al. Worldwide epidemiology of atrial fibrillation: a Global Burden of Disease 2010 Study. Circulation 2014;129:837-47. [Crossref] [PubMed]
2. Zoni-Berisso M, Lercari F, Carazza T, et al. Epidemiology of atrial fibrillation: European perspective. Clin Epidemiol 2014;6:213-20. [Crossref] [PubMed]
3. Darby AE, Dimarco JP. Management of atrial fibrillation in patients with structural heart disease. Circulation 2012;125:945-57. [Crossref] [PubMed]
4. Castellá M. Atrial fibrillation surgery and mitral repair. J Vis Surg 2017;3:150. [Crossref] [PubMed]
5. Sunderland N, Maruthappu M, Nagendran M. What size of left atrium significantly impairs the success of maze surgery for atrial fibrillation? Interact Cardiovasc Thorac Surg 2011;13:332-8. [Crossref] [PubMed]
6. Huffman MD, Karmali KN, Berendsen MA, et al. Concomitant atrial fibrillation surgery for people undergoing cardiac surgery. Cochrane Database Syst Rev 2016;2016:CD011814. [Crossref] [PubMed]
7. Phan K, Xie A, Tian DH, et al. Systematic review and meta-analysis of surgical ablation for atrial fibrillation during mitral valve surgery. Ann Cardiothorac Surg 2014;3:3-14. [Crossref] [PubMed]
8. Whitlock RP, Belley-Cote EP, Paparella D, et al. Left Atrial Appendage Occlusion during Cardiac Surgery to Prevent Stroke. N Engl J Med 2021;384:2081-91. [Crossref] [PubMed]
9. Ruaengsri C, Schill MR, Khiabani AJ, et al. The Cox-maze IV procedure in its second decade: still the gold standard? Eur J Cardiothorac Surg 2018;53:i19-i25. [Crossref] [PubMed]
10. Khiabani AJ, MacGregor RM, Bakir NH, et al. The long-term outcomes and durability of the Cox-Maze IV procedure for atrial fibrillation. J Thorac Cardiovasc Surg 2022;163:629-641.e7. [Crossref] [PubMed]
11. Gillinov AM, Gelijns AC, Parides MK, et al. Surgical ablation of atrial fibrillation during mitral-valve surgery. N Engl J Med 2015;372:1399-409. [Crossref] [PubMed]
12. Rankin JS, Grau-Sepulveda MV, Ad N, et al. Associations Between Surgical Ablation and Operative Mortality After Mitral Valve Procedures. Ann Thorac Surg 2018;105:1790-6. [Crossref] [PubMed]
13. Otto CM, Nishimura RA, Bonow RO, et al. 2020 ACC/AHA Guideline for the Management of Patients With Valvular Heart Disease: Executive Summary: A Report of the American College of Cardiology/American Heart Association Joint Committee on Clinical Practice Guidelines. Circulation 2021;143:e35-71. [Crossref] [PubMed]
14. Vahanian A, Beyersdorf F, Praz F, et al. 2021 ESC/EACTS Guidelines for the management of valvular heart disease. Eur Heart J. 2022;43:561-632. Erratum in: Eur Heart J 2022;43:2022. [Crossref] [PubMed]
15. Moher D, Liberati A, Tetzlaff J, et al. Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. BMJ 2009;339:b2535. [Crossref] [PubMed]
16. Wan X, Wang W, Liu J, et al. Estimating the sample mean and standard deviation from the sample size, median, range and/or interquartile range. BMC Med Res Methodol 2014;14:135. [Crossref] [PubMed]
17. Guyot P, Ades AE, Ouwens MJ, et al. Enhanced secondary analysis of survival data: reconstructing the data from published Kaplan-Meier survival curves. BMC Med Res Methodol 2012;12:9. [Crossref] [PubMed]
18. Ad N, Holmes SD, Massimiano PS, et al. Long-term outcome following concomitant mitral valve surgery and Cox maze procedure for atrial fibrillation. J Thorac Cardiovasc Surg 2018;155:983-94. [Crossref] [PubMed]
19. Baek MJ, Na CY, Oh SS, et al. Surgical treatment of chronic atrial fibrillation combined with rheumatic mitral valve disease: Effects of the cryo-maze procedure and predictors for late recurrence. Eur J Cardiothorac Surg 2006;30:728-36. [Crossref] [PubMed]
20. Bando K, Kobayashi J, Kosakai Y, et al. Impact of Cox maze procedure on outcome in patients with atrial fibrillation and mitral valve disease. J Thorac Cardiovasc Surg 2002;124:575-83. [Crossref] [PubMed]
21. Bogachev-Prokophiev A, Sharifulin R, Karadzha A, et al. Results of concomitant cryoablation for atrial fibrillation during mitral valve surgery. Interact Cardiovasc Thorac Surg 2022;34:540-7. [Crossref] [PubMed]
22. Brick AV, Braile DM. Chronic Atrial Fibrillation Ablation with Harmonic Scalpel during Mitral Valve Surgery. Braz J Cardiovasc Surg 2017;32:22-8. [Crossref] [PubMed]
23. Chavez EK, Colafranceschi AS, Monteiro AJO, et al. Surgical Treatment of Atrial Fibrillation in Patients with Rheumatic Valve Disease. Braz J Cardiovasc Surg 2017;32:202-9. [Crossref] [PubMed]
24. Chen L, Xiao Y, Ma R, et al. Bipolar radiofrequency ablation is useful for treating atrial fibrillation combined with heart valve diseases. BMC Surg 2014;14:32. [Crossref] [PubMed]
25. Churyla A, Iddriss A, Andrei AC, et al. Biatrial or Left Atrial Lesion Set for Ablation During Mitral Surgery: Risks and Benefits. Ann Thorac Surg 2017;103:1858-65. [Crossref] [PubMed]
26. Dong L, Fu B, Teng X, et al. Clinical analysis of concomitant valve replacement and bipolar radiofrequency ablation in 191 patients. J Thorac Cardiovasc Surg 2013;145:1013-7. [Crossref] [PubMed]
27. Ezelsoy M, Oral K, Çaynak B, et al. Long-term results of monopolar versus bipolar radiofrequency ablation procedure for atrial fibrillation. Turk Gogus Kalp Damar Cerrahisi Derg 2019;27:152-8. [Crossref] [PubMed]
28. Funatsu T, Kobayashi J, Nakajima H, et al. Long-term results and reliability of cryothermic ablation based maze procedure for atrial fibrillation concomitant with mitral valve surgery. Eur J Cardiothorac Surg 2009;36:267-71; discussion 271. [Crossref] [PubMed]
29. Garcia-Villarreal OA. Pulmonary vein isolation for persistent atrial fibrillation. Long-term results. Asian Cardiovasc Thorac Ann 2015;23:665-9. [Crossref] [PubMed]
30. Gatti G, Fiorica I, Dell'Angela L, et al. Isolated left atrial cryoablation of atrial fibrillation in conventional mitral valve surgery. Int J Cardiol Heart Vasc 2020;31:100652. [Crossref] [PubMed]
31. Geidel S, Lass M, Jensen F, et al. Ablation surgery failure after combined permanent atrial fibrillation ablation and mitral valve surgery. Thorac Cardiovasc Surg 2008;56:185-9. [Crossref] [PubMed]
32. Gelsomino S, La Meir M, Van Breugel HN, et al. Surgical ablation in patients undergoing mitral valve surgery: impact of lesion set and surgical techniques on long-term success. Europace 2016;18:1528-37. [Crossref] [PubMed]
33. Gillinov AM, Bakaeen F, McCarthy PM, et al. Surgery for paroxysmal atrial fibrillation in the setting of mitral valve disease: a role for pulmonary vein isolation? Ann Thorac Surg 2006;81:19-26; discussion 27-8. [Crossref] [PubMed]
34. Goette J, Weimar T, Vosseler M, et al. Freezing Equals Freezing? Performance of Two Cryoablation Devices in Concomitant Mitral Valve Repair. Thorac Cardiovasc Surg 2016;64:672-8. [Crossref] [PubMed]
35. Han J, Wang H, Wang Z, et al. Comparison of CryoMaze With Cut-and-Sew Maze Concomitant With Mitral Valve Surgery: A Randomized Noninferiority Trial. Semin Thorac Cardiovasc Surg 2021;33:680-8. [Crossref] [PubMed]
36. Hwang SK, Yoo JS, Kim JB, et al. Long-Term Outcomes of the Maze Procedure Combined With Mitral Valve Repair: Risk of Thromboembolism Without Anticoagulation Therapy. Ann Thorac Surg 2015;100:840-3; discussion 843-4. [Crossref] [PubMed]
37. Jiang B, Gu JW, Song YY, et al. Effects of Modified Simultaneous Unipolar Saline-Irrigated Radiofrequency Ablation in Patients with Atrial Fibrillation Combined with Mitral Valve Disease. Int J Gen Med 2021;14:1547-53. [Crossref] [PubMed]
38. Kasemsarn C, Lerdsomboon P, Sungkahaphong V, et al. Left atrial reduction in modified maze procedure with concomitant mitral surgery. Asian Cardiovasc Thorac Ann 2014;22:421-9. [Crossref] [PubMed]
39. Kim KC, Cho KR, Kim YJ, et al. Long-term results of the Cox-Maze III procedure for persistent atrial fibrillation associated with rheumatic mitral valve disease: 10-year experience. Eur J Cardiothorac Surg 2007;31:261-6. [Crossref] [PubMed]
40. Kim WK, Kim HJ, Kim JB, et al. Concomitant ablation of atrial fibrillation in rheumatic mitral valve surgery. J Thorac Cardiovasc Surg 2019;157:1519-1528.e5. [Crossref] [PubMed]
41. Labin JE, Haque N, Sinn LA, et al. The Cox-Maze IV procedure for atrial fibrillation is equally efficacious in patients with rheumatic and degenerative mitral valve disease. J Thorac Cardiovasc Surg 2017;154:835-44. [Crossref] [PubMed]
42. Lavalle C, Straito M, Chourda E, et al. Left Atrial Appendage Exclusion in Atrial Fibrillation Radiofrequency Ablation during Mitral Valve Surgery: A Single-Center Experience. Cardiol Res Pract 2021;2021:9999412. [Crossref] [PubMed]
43. Lawrance CP, Henn MC, Miller JR, et al. Comparison of the stand-alone Cox-Maze IV procedure to the concomitant Cox-Maze IV and mitral valve procedure for atrial fibrillation. Ann Cardiothorac Surg 2014;3:55-61. [Crossref] [PubMed]
44. Loardi C, Alamanni F, Galli C, et al. Surgical Treatment of Concomitant Atrial Fibrillation: Focus onto Atrial Contractility. Biomed Res Int 2015;2015:274817. [Crossref] [PubMed]
45. McCarthy PM, Cox JL, Kruse J, et al. One hundred percent utilization of a modified CryoMaze III procedure for atrial fibrillation with mitral surgery. J Thorac Cardiovasc Surg 2022;S0022-5223(22)00920-5.
46. Nardi P, Mve Mvondo C, Scafuri A, et al. Left atrial radiofrequency ablation associated with valve surgery: midterm outcomes. Thorac Cardiovasc Surg 2013;61:392-7. [Crossref] [PubMed]
47. Rahmanian PB, Filsoufi F, Salzberg S, et al. Surgical treatment of atrial fibrillation using cryothermy in patients undergoing mitral valve surgery. Interact Cardiovasc Thorac Surg 2008;7:990-5. [Crossref] [PubMed]
48. Rostagno C, Capecchi I, Gelsomino S, et al. Sinus Rhythm Restoration after Radiofrequency Ablation Improves Survival in Patients Undergoing Mitral Valve Surgery: A Eight Year Single Center Study. J Atr Fibrillation 2017;10:1567. [Crossref] [PubMed]
49. Wang H, Han J, Wang Zengwei, et al. A Modified Maze Versus Cut-and-Sew Maze for Long-Standing Persistent Atrial Fibrillation Concomitant with Mitral Valve Surgery: A Propensity Score-Matched Cohort Study. Heart Lung Circ 2022;31:1553-9. [Crossref] [PubMed]
50. Wang W, Guo LR, Martland AM, et al. Biatrial reduction plasty with reef imbricate technique as an adjunct to maze procedure for permanent atrial fibrillation associated with giant left atria. Interact Cardiovasc Thorac Surg 2010;10:577-81. [Crossref] [PubMed]
51. Wu CC, Chang JP, Chen MC, et al. Long-term results of radiofrequency maze procedure for persistent atrial fibrillation with concomitant mitral surgery. J Thorac Dis 2017;9:5176-83. [Crossref] [PubMed]
52. Yao MH, Ren CL, Zhang L, et al. Short-term and mid-term effects of radiofrequency ablation in mitral valve surgery in patients with different left atrial sizes. J Thorac Dis 2020;12:6030-8. [Crossref] [PubMed]
53. Iribarne A, DiScipio AW, McCullough JN, et al. Surgical Atrial Fibrillation Ablation Improves Long-Term Survival: A Multicenter Analysis. Ann Thorac Surg 2019;107:135-42. [Crossref] [PubMed]
54. Gammie JS, Haddad M, Milford-Beland S, et al. Atrial fibrillation correction surgery: lessons from the Society of Thoracic Surgeons National Cardiac Database. Ann Thorac Surg 2008;85:909-14. [Crossref] [PubMed]
55. Badhwar V, Rankin JS, He X, et al. The Society of Thoracic Surgeons Mitral Repair/Replacement Composite Score: A Report of The Society of Thoracic Surgeons Quality Measurement Task Force. Ann Thorac Surg 2016;101:2265-71. [Crossref] [PubMed]
56. Badhwar V, Rankin JS, Damiano RJ Jr, et al. The Society of Thoracic Surgeons 2017 Clinical Practice Guidelines for the Surgical Treatment of Atrial Fibrillation. Ann Thorac Surg 2017;103:329-41. [Crossref] [PubMed]
57. Cox JL, Ad N, Palazzo T, et al. Current status of the Maze procedure for the treatment of atrial fibrillation. Semin Thorac Cardiovasc Surg 2000;12:15-9. [Crossref] [PubMed]
58. Gillinov AM. Choice of surgical lesion set: answers from the data. Ann Thorac Surg 2007;84:1786-92. [Crossref] [PubMed]
59. Sanders P, Nalliah CJ, Dubois R, et al. Frequency mapping of the pulmonary veins in paroxysmal versus permanent atrial fibrillation. J Cardiovasc Electrophysiol 2006;17:965-72. [Crossref] [PubMed]
60. Garrey WE. The nature of fibrillary contraction of the heart: its relation to tissue mass and form. Am J Physiol 1914;33:397-414.
61. Badhwar V, Rovin JD, Davenport G, et al. Left atrial reduction enhances outcomes of modified maze procedure for permanent atrial fibrillation during concomitant mitral surgery. Ann Thorac Surg 2006;82:1758-63; discussion 1764. [Crossref] [PubMed]
62. Stulak JM, Suri RM, Burkhart HM, et al. Surgical ablation for atrial fibrillation for two decades: are the results of new techniques equivalent to the Cox maze III procedure? J Thorac Cardiovasc Surg 2014;147:1478-86. [Crossref] [PubMed]
63. Boano G, Vánky F, Åström Aneq M. Effect of cryothermic and radiofrequency Cox-Maze IV ablation on atrial size and function assessed by 2D and 3D echocardiography, a randomized trial. To freeze or to burn. Clin Physiol Funct Imaging 2023;43:431-40. [Crossref] [PubMed]
64. Lee R, Vassallo P, Kruse J, et al. A randomized, prospective pilot comparison of 3 atrial appendage elimination techniques: Internal ligation, stapled excision, and surgical excision. J Thorac Cardiovasc Surg 2016;152:1075-80. [Crossref] [PubMed]
